You are here: Home >> Interconnects >> Rectangular Connectors >> Discrete Wire Housing

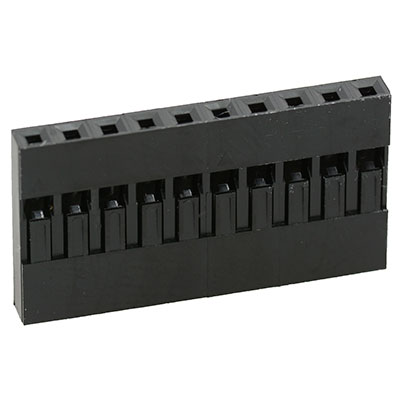

Connector Housing Socket 10 Position 2.54mm Straight Bag

JS-1108-10-R: JAMECO VALUEPRO View Larger Image
Image is representative only
JAMECO VALUEPRO
Jameco Part no. 103191
Manufacturer   JAMECO VALUEPRO
Manufacturer no. JS-1108-10-R
  RoHS compliant
Catalog 151 , page 58
Learn more about Jameco ValuePro, ReliaPro
and BenchPro brands.

Pricing & Availability

$0.55

# of Unit Price
1+ $0.55
10+ $0.49
100+ $0.45
500+ $0.39
1000+ $0.35
  • Availability: Ship  today
+ Add to my favorites

 Add to cart

Connector Housing Socket 10 Position 2.54mm Striaght

Specifications

  • Mates with 0.025" square post on pattern of 0.100" headers
  • Current rating: 1A
  • Housing material: Plastic
  • Pin material: Brass/tin plated
  • 26-22AWG
  • Temperature rating -55°C to +105°C
  • Use crimper P/N 159266

    Report a problem
    Suggest a product
  • Specification Value
    FamilyJS
    Maximum Current Rating3A
    Maximum Voltage Rating250VDC|250VAC
    Minimum Operating Temperature-20°C
    Maximum Operating Temperature85°C
    PackagingBag
    Pitch2.54mm
    Product Depth14mm
    Product Length25.6mm
    Specification Value
    Product TypeConnector Discrete Wire Housing
    TypeHousing
    Product Height2.54mm
    GenderSKT
    Number of Contacts10
    Number of Rows1
    Housing MaterialPolybutylene Terephthalate
    Body OrientationStraight
