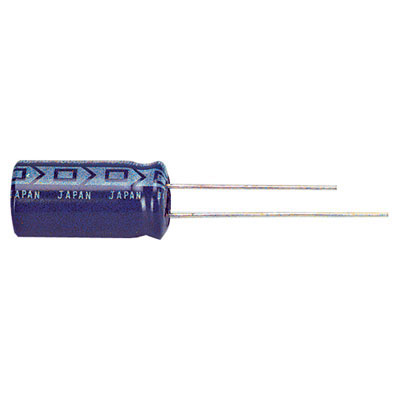

Capacitor 100 uF 16 Volt 20% 6x5mm Radial 2.5mm 125ma 2000 Hours

Jameco ValuePro Rohs logo
ECE-A1CKA101-JVP Electrolytic, Radial

View larger image

  • Jameco Part no.: 94289
  • Manufacturer: Jameco ValuePro
  • Manufacturer p/n: ECE-A1CKA101-JVP
  • HTS code: 8532.29.0040
You May Also Like
ECA-1HM101-JVP ECA-1HM101-JVP
Jameco ValuePro
$0.14
R1/50 R1/50
James Electronics
$0.14
ECA-1HM100-JVP ECA-1HM100-JVP
Jameco ValuePro
$0.15
ECA-1CM102-JVP ECA-1CM102-JVP
Jameco ValuePro
$0.35
R220/25 R220/25
James Electronics
$0.35
R2200/25 R2200/25
James Electronics
$0.85

This product has been discontinued and is not available for purchase. Please click on the button below for replacement and/or substitute products.

Substitute Products
# of units Price
10+ $0.10
50+ $0.09
100+ $0.07
500+ $0.065
1000+ $0.06

Request Larger Quantity Quote

NOTE:
  • Order in multiples of 10

Capacitor 100µF 16Volt 20% 6x5mm Radial 2.5mm 125mA 2000 Hours

Specifications

  • Leakage current at 20°C after 1 minute: 0.03CV or 4uA, whichever is greater
  • After 2 minutes: 0.01CV or 3uA, whichever is greater

    Report a problem
    Suggest a product
    • Specification Value
    Capacitance (uF)100
    Voltage Rating16 VDC
    Tolerance20%
    Dimensions6 x 5 x 2.5
    ConstructionRadial
    Maximum Operating Temperature85°C
    MountingThrough Hole
    Product TypeAluminum Electrolytic Capacitor
    Pitch2.5 mm
    Leakage Current16uA
    Lifetime2000 Hours
    Ripple Current125mA
    Minimum Operating Temperature-40°C
    Lead Diameter0.5 mm
    Height5 mm
    Body Diameter6 mm
    Capacitance100 uF
