HellermannTyton 121-73390 Cable Ties

Kabelrap Tie 13.3" Long 176lb Tensile Strength PA66HS Black 50 per Package

Features

• Kabelrap tie offers a smooth strap providing secure assembly without damaging cables or hoses.
• Curved head design provides full circumferential compression which offers vibration resistance.
• Product Type: Cable Ties - Special Function

Technical Specifications

• Material: Polyamide 6.6 heat stabilized (PA66HS)
• Operating Temperature: -40°F to +221°F (-40°C to +105°C)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Bundle Diameter Max. (Imperial): 3.39"
• Bundle Diameter Max. (Metric): 86.0 mm
• Bundle Diameter Min. (Imperial): 0.31"
• Bundle Diameter Min. (Metric): 8.0 mm
• Cable Tie Closure: fibreglass pin
• Fixation Method: Cable Tie
• Length L (Metric): 337.0 mm
• Recommended Application Tool: 121-00680
• Releasable Closure: No
• Tensile Strength Min. (kgf): 80.05 kgf
• Tensile Strength Min. (Metric): 785 N
• Toothing (Serration): Not Serrated
• Variant: Not Serrated
• Width W (Metric): 8.0 mm
• CE Certified: No
• CSA Certified: No
• Flammability: UL 94 V-2
• Hazardous Goods: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306324164

Overview

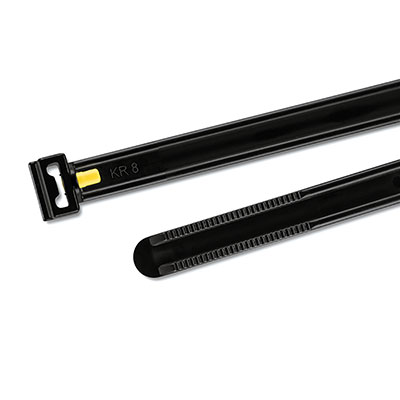

The patented Kabelrap cable tie design offers a smooth strap which is locked into place with a glass fiber reinforced pin. The curved head design provides full circumferential compression around the bundle or harness. Once applied with the required KR6/8 manual tool, the tie offers a secure and vibration resistant assembly.
