HellermannTyton 150-55500 Cable Ties

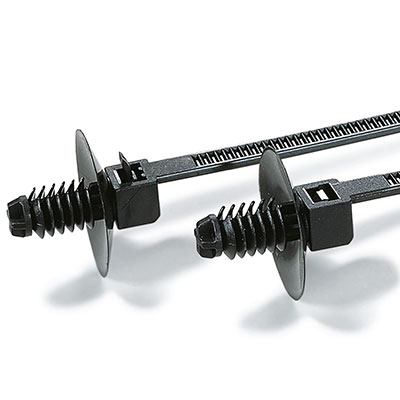

Cable Tie 1-Piece with Fir Tree Mount 6.7" Long 0.25 - 0.28" Mounting Hole Diameter PA66 Black 500 per Package

Features

• An all-in-one bundling and mounting solution that reduces parts and costs.
• High-specification materials and superior design suit the bundling and fastening requirements of complex applications.
• Release feature allows maintenance or changeouts as needed.
• Product Type: Fir Tree Mount Cable Ties

Technical Specifications

• Material: Polyamide 6.6 (PA66)
• Operating Temperature: -40°F to +185°F (-40°C to +85°C)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Bundle Diameter Max. (Imperial): 1.22"
• Bundle Diameter Max. (Metric): 31.0 mm
• Bundle Diameter Min. (Imperial): 0.06"
• Bundle Diameter Min. (Metric): 1.5 mm
• Cable Tie Closure: plastic pawl
• Disc Diameter (Imperial): 0.87"
• Disc Diameter (Metric): 22.0 mm
• Fixation Method: Fir tree for round holes
• Focused Markets and Industries: Automotive Industry; Electronics Industry; Defense Industry
• Height H (Imperial): 0.5"
• Length L (Imperial): 6.7"
• Length L (Metric): 170.0 mm
• Mounting Hole Diameter D (Imperial): 0.25 - 0.28"
• Mounting Hole Diameter D (Metric): 6.3 - 7.1 mm
• Mounting Hole Diameter D Max. (Imperial): 0.28"
• Mounting Hole Diameter D Max. (Metric): 7.1 mm
• Mounting Hole Diameter D Min. (Imperial): 0.25"
• Mounting Hole Diameter D Min. (Metric): 6.3 mm
• Mounting Hole Shape: Round
• Panel Thickness (Imperial): 0.12 - 0.28"
• Panel Thickness (Metric): 3.0 - 7.0 mm
• Panel Thickness Max. (Imperial): 0.28"
• Panel Thickness Max. (Metric): 7.0 mm
• Panel Thickness Min. (Imperial): 0.12"
• Panel Thickness Min. (Metric): 3.0 mm
• Recommended Application Tool: 110-03500; 110-05005; 110-70083; 110-80003
• Releasable Closure: Yes
• Tensile Strength Min. (Imperial): 30 lbs
• Tensile Strength Min. (kgf): 13.77 kgf
• Tensile Strength Min. (Metric): 135 N
• Thickness T (Imperial): 0.06"
• Thickness T (Metric): 1.5 mm
• Toothing (Serration): Inside Serrated
• Variant: Inside Serrated
• Width W (Imperial): 0.2"
• Width W (Metric): 5.0 mm
• CE Certified: No
• CSA Certified: No
• Flammability: UL 94 V-2
• Hazardous Goods: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306296690

Overview

The releasable cable tie with fir tree mount offers a complete bundling and fastening solution. The extended pawl allows the user to release the tie for bundle maintenance. HellermannTyton’s one-piece mounting ties deliver the ideal combination of high-specification materials and superior design.
