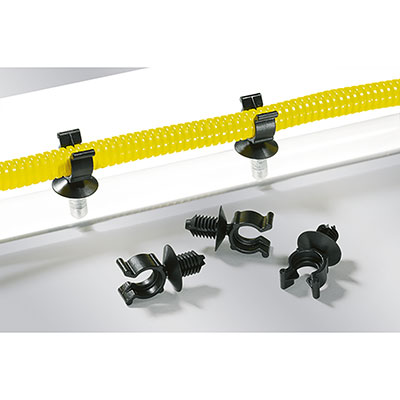

Convoluted Tubing Clip 13mm Max Bun Dia Hole Dia 6.5-7mm PA66HIRHS Black 500 per Package
Features
Clip includes an internal rib that spans the inside of the bracket to fit securely into the profile of the tubing to prevent lateral movement and slipping of the tubing.
Extended fir tree allows for a wide range of panel thicknesses.
Fir tree design provides low insertion forces and high extraction forces.
Product Type: Convoluted Tubing - Accessories;Fir Tree Clips
Technical Specifications
Material: Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
Operating Temperature: -40°F to +221°F (-40°C to +105°C)
Color: Black (BK)
Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
Use Conditions: For Indoor and Outdoor Use
Attaches to Diameter (Metric): NW13
Bundle Diameter Max. (Imperial): 0.5"
Bundle Diameter Max. (Metric): 13.0 mm
Disc Diameter (Metric): 16.0 mm
Fixation Method: Fir Tree
Focused Markets and Industries: Solar Energy Sector; Wind Energy Sector; Rail Transportation Sector; Automotive Industry; Electronics Industry; Defense Industry
Height H (Imperial): .992"
Height H (Metric): 25.2 mm
Height H2 (Imperial): .437"
Height H2 (Metric): 11.1 mm
Mounting Hole Diameter D (Imperial): 0.26 - 0.28"
Mounting Hole Diameter D (Metric): 6.5 - 7.0 mm
Mounting Hole Diameter D Max. (Imperial): 0.28"
Mounting Hole Diameter D Max. (Metric): 7.0 mm
Mounting Hole Diameter D Min. (Imperial): 0.26"
Mounting Hole Diameter D Min. (Metric): 6.5 mm
Nominal Diameter (Imperial): 0.5"
Nominal Diameter (Metric): 13.0 mm
Panel Thickness (Imperial): 0.03 - 0.24"
Panel Thickness (Metric): 0.75 - 6.0 mm
Panel Thickness Max. (Imperial): 0.24"
Panel Thickness Max. (Metric): 6.0 mm
Panel Thickness Min. (Imperial): 0.03"
Panel Thickness Min. (Metric): 0.75 mm
Trade Size: 1/2"
Variant: Clips
Width W (Imperial): 3.15"
Width W (Metric): 8.0 mm
CE Certified: No
CSA Certified: No
Flammability: UL 94 HB
Hazardous Goods: No
Prop65 Warning: No
REACH Conformity: Yes
ROHS Compliant: Yes
UL Listed (US): No
UL Listed (US and Canada): No
UL Recognized (US): No
UL Recognized (US and Canada): No
UV Resistant (Yes/No): No
UPC: 089306260844
Overview
Convoluted Tubing Clips provide a quick and easy method for firmly securing corrugated covered cables and wires to a surface. Applications such as this can be found in a wide variety of industries such as the wire harness, automotive, trucking, and heavy equipment manufacturing industries.
