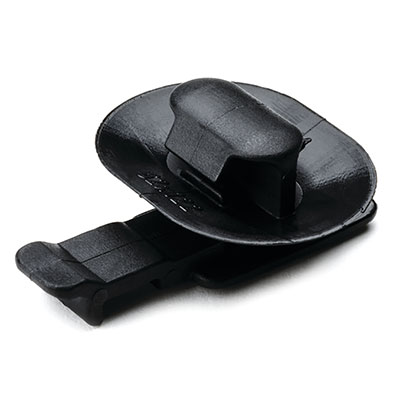

Connector Clip with Oval Fir Tree 6.2x12.2mm Hole Dia PA66HIRHS Black 10,000/box
Features
HellermannTyton Connector Clips provide a single method to mount connectors to various surfaces in a variety of applications.
Highly engineered designs feature anti-rattle discs, anti-rotation oval fir trees and clamps for mounting on edges.
An assortment of Connector Cips is available to fit the variety of connector slot designs made by most of the largest global connector manufacturers.
Product Type: Connector Clips;Fir Tree Clips
Technical Specifications
Material: Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
Operating Temperature: -40°F to +221°F (-40°C to +105°C)
Color: Black (BK)
Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
Use Conditions: For Indoor and Outdoor Use
Fixation Method: Fir Tree for oval holes
Focused Markets and Industries: Automotive Industry
Height H (Metric): 12.4 mm
Length L (Metric): 27.0 mm
Mounting Hole Diameter D (Imperial): 0.24 x 0.48"
Mounting Hole Diameter D (Metric): 6.2 x 12.2 mm
Mounting Hole Diameter D Max. (Imperial): 0.24"
Mounting Hole Diameter D Max. (Metric): 6.2 mm
Mounting Hole Diameter D Min. (Imperial): 0.24"
Mounting Hole Diameter D Min. (Metric): 6.2 mm
Mounting Hole Shape: Oval
Panel Thickness (Imperial): 0.07 - 0.09"
Panel Thickness (Metric): 1.7 - 2.3 mm
Panel Thickness Max. (Imperial): 0.09"
Panel Thickness Max. (Metric): 2.3 mm
Panel Thickness Min. (Imperial): 0.07"
Panel Thickness Min. (Metric): 1.7 mm
Slot Size (W2): 11.0 mm
Slot Size (W2) (Imperial): 0.43"
Width W (Metric): 16.0 mm
CE Certified: No
CSA Certified: No
EWCAP standard: EWCAP-005-11
Hazardous Goods: No
Prop65 Warning: No
REACH Conformity: Yes
ROHS Compliant: Yes
UL Listed (US): No
UL Listed (US and Canada): No
UL Recognized (US): No
UL Recognized (US and Canada): No
UV Resistant (Yes/No): No
UPC: 089306331469
Overview
Connector Clips feature various attachment point configurations to accommodate the many connectors on the market. They are first mated with a connector on a wire harness or cable assembly, then secured to a surface using the integrated mount. With so many configurations available, attachment surfaces can be a hole, edge, stud or even another harness assembly.
