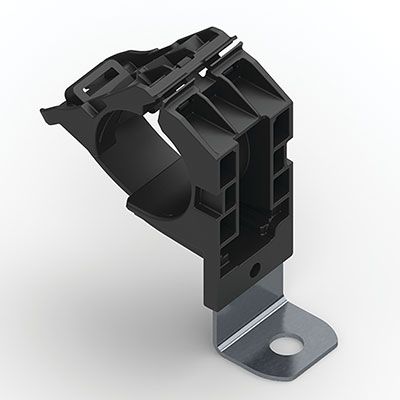

HellermannTyton 151-01492 Wire Mangement Clips and Clamps

Ratchet P-Clamp 0.76 - 1.42" Bundle Dia 90° Short 0.33" Hole Dia PA66HIRHSUV/ST/ZN Black 160/ctn

Features

• One-piece ratchet closure design allows for easy installation during pre- or final assembly.
• Four sizes and multiple configurations handle a wide range of diameters and applications, reducing part inventory.
• Clamp interior is designed to guide and center bundle to reduce pinching.
• Easy release feature allows for quick adjustments and maintenance.
• Impact modified, heat and UV stabilized PA66 provides long-term durability, indoors and out.
• Soft material inserts are available for sensitive bundles.
• For pre-determined clamp pressure, a Tension Tab is available for use with our EVO Series hand tools.
• Product Type: Ratchet P-Clamps

Technical Specifications

• Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV);Steel (ST);Zinc plated (ZN)
• Operating Temperature: -40°F to +221°F (-40°C to +105°C)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Angle: 90 °
• Bundle Diameter Max. (Imperial): 1.42"
• Bundle Diameter Max. (Metric): 36.0 mm
• Bundle Diameter Min. (Imperial): 0.76"
• Bundle Diameter Min. (Metric): 19.4 mm
• Cable Tie Width Max. (Imperial): 0.52"
• Fixation Method: Screw Mounting
• Focused Markets and Industries: Automotive Industry; Defense Industry; Industrial Automation; Marine; Mining Industry; Energy Provider; OEM Industry; Offshore Industry; Panel Building; Rail Transportation Sector; Shipbuilding; Truck Heavy Equipment; Wind Energy Sector; Chemical Industry; Electrical Installation; Electronics Industry; Food Industry; Solar Energy Sector
• Length L (Imperial): 5.58"
• Length L (Metric): 141.8 mm
• Length L2 (Imperial): 3.99"
• Length L2 (Metric): 101.2 mm
• Mounting Hole Centers (Imperial): 1.57"
• Mounting Hole Centers (Metric): 39.9 mm
• Mounting Hole Diameter D (Imperial): 0.327"
• Mounting Hole Diameter D (Metric): 8.31 mm
• Mounting Hole Diameter D Max. (Metric): 8.31 mm
• Mounting Hole Diameter D Min. (Metric): 8.31 mm
• Stamping Material: Steel (ST)
• Stud Diameter (Metric): M8
• Tensile Strength Min. (Imperial): 100 lbs
• Tensile Strength Min. (Metric): 445 N
• Variant: Short
• Width W (Imperial): 1.37"
• Width W (Metric): 34.9 mm
• Width W2 (Imperial): 1.181"
• Width W2 (Metric): 30.0 mm
• CE Certified: No
• CSA Certified: No
• Flammability: UL 94 HB
• Halogen Free: Yes
• Hazardous Goods: No
• Plenum Rating: AH-2
• Prop65 Warning: No
• REACH Conformity: Yes
• Reusable (Yes/No): Yes
• ROHS Compliant: Yes
• UL-File Number + Logo: E64139 [cULus]
• UL Listed (US): Yes
• UL Listed (US and Canada): Yes
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): Yes
• UPC: 089306390909
