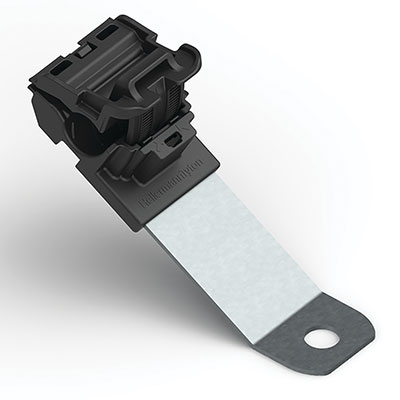

Ratchet P-Clamp 0.24 - 0.54" Bundle Dia 30° Long 0.26" Hole Dia PA66HIRHSUV/ST/ZN Black 200/ctn
Features
One-piece ratchet closure allows for easy installation during pre- or final assembly.
Easy release feature simplifies quick adjustments and maintenance.
Impact modified, heat and UV stabilized PA66 provides long-term durability, indoors and out.
Zinc-plated steel mounting plate tolerates high torque and is treated to resist chemicals and salt spray.
Angled mounting plates are ideal for stacking RPCs or for avoiding obstructions or heat sources.
Product Type: Ratchet P-Clamps
Technical Specifications
Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV);Steel (ST);Zinc plated (ZN)
Operating Temperature: -40°F to +221°F (-40°C to +105°C)
Color: Black (BK)
Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
Use Conditions: For Indoor and Outdoor Use
Angle: 30 °
Bundle Diameter Max. (Imperial): 0.54"
Bundle Diameter Max. (Metric): 13.7 mm
Bundle Diameter Min. (Imperial): 0.24"
Bundle Diameter Min. (Metric): 6.2 mm
Cable Tie Width Max. (Imperial): 0.52"
Fixation Method: Screw Mounting
Focused Markets and Industries: Automotive Industry; Defense Industry; Industrial Automation; Marine; Mining Industry; Energy Provider; OEM Industry; Offshore Industry; Panel Building; Rail Transportation Sector; Shipbuilding; Truck Heavy Equipment; Wind Energy Sector; Chemical Industry; Electrical Installation; Electronics Industry; Food Industry; Solar Energy Sector
Length L (Imperial): 5.93"
Length L (Metric): 150.5 mm
Length L2 (Imperial): 4.06"
Length L2 (Metric): 103.2 mm
Mounting Hole Centers (Imperial): 2.85"
Mounting Hole Centers (Metric): 72.4 mm
Mounting Hole Diameter D (Imperial): 0.256"
Mounting Hole Diameter D (Metric): 6.5 mm
Mounting Hole Diameter D Max. (Metric): 6.5 mm
Mounting Hole Diameter D Min. (Metric): 6.5 mm
Stamping Material: Steel (ST)
Stud Diameter (Metric): M6
Tensile Strength Min. (Imperial): 100 lbs
Tensile Strength Min. (Metric): 445 N
Variant: Long
Width W (Imperial): 1.37"
Width W (Metric): 34.9 mm
Width W2 (Imperial): 1.181"
Width W2 (Metric): 30.0 mm
CE Certified: No
CSA Certified: No
Flammability: UL 94 HB
Halogen Free: Yes
Hazardous Goods: No
Plenum Rating: AH-2
Prop65 Warning: No
REACH Conformity: Yes
Reusable (Yes/No): Yes
ROHS Compliant: Yes
UL-File Number + Logo: E64139 [cULus]
UL Listed (US): Yes
UL Listed (US and Canada): Yes
UL Recognized (US): No
UL Recognized (US and Canada): No
UV Resistant (Yes/No): Yes
UPC: 089306396086
Overview
The Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. The robust design and durable materials make it ideal for heavy duty applications, both indoors and out. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This nondestructive release allows the clamp to be reused without removing or replacing any bolts or screws.
