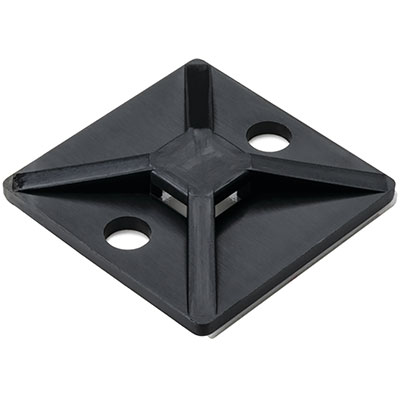

HellermannTyton 151-03098 Wire Mangement Clips and Clamps

Adhesive Cable Tie Mount 1.12" x 1.12" 0.18" Max Tie Width 0.18" Hole Dia PA666V0 T50 Black 100 per Package

Features

• 4-way opening allows cable ties to be installed parallel or perpendicular to bundles.
• The high-heat, high-bond adhesive is ideal for outdoor applications.
• Two predrilled holes extend mounting options and solutions.
• Extended adhesive liner is easy to remove quickly.
• Low fire hazard materials comply with stringent NFPA 130 safety standards and improve opportunities to get product specified at the engineering stage of a project (excluding adhesive).
• Product Type: Adhesive Mounting Bases

Technical Specifications

• Material: Polyamide 6.6/6, V0 (PA666V0)
• Operating Temperature: -40°F to +248°F (-40°C to +120°C)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Adhesive: High heat high bond acrylate with base of acrylic foam
• Cable Tie Width Max. (Imperial): 0.18"
• Fixation Method: Screw Mounting and Adhesive
• For Cable Ties: T18 - T50
• Height H (Imperial): 0.22"
• Height H (Metric): 5.6 mm
• Length L (Imperial): 1.12"
• Length L (Metric): 28.5 mm
• Maximum Recommended Load (metric): 0.00 kgf
• Mounting Hole Centers (Imperial): 0.8"
• Mounting Hole Centers (Metric): 20.2 mm
• Mounting Hole Diameter D (Imperial): 0.18"
• Mounting Hole Diameter D (Metric): 4.6 mm
• Mounting Screw Type: Adhesive
• Width W (Imperial): 1.12"
• Width W (Metric): 28.5 mm
• CE Certified: No
• CSA Certified: No
• Flammability: UL 94 V-0
• Halogen Free: No
• Prop65 Warning: No
• REACH Conformity: No
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306432852

Overview

MB4A adhesive mounts are for use with HellermannTyton T18 - T50 Series cable ties to provide stability when securing bundles. The high-heat, high-bond acrylic adhesive-backed mounts can be used to secure a bundle and have two predrilled holes to extend mounting options.
