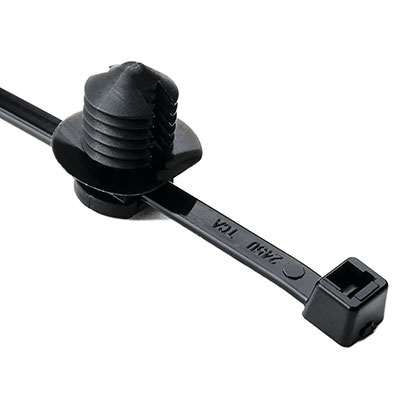

HellermannTyton 156-00091 Cable Ties

2-Piece Cable Tie with Fir Tree Mount 8.0"L 0.38 - 0.39" Hole Dia 50lb PA66HS Black 500 per Package

Features

• Friction tab inside of fir tree allows tie to sit in mount without falling out prior to installation.
• Initial fir tree serves as a locating feature for assistance in blind assembly applications.
• Disc feature provides anti-rattle protection in high vibration applications.
• Product Type: Fir Tree Mount Cable Ties

Technical Specifications

• Material: Polyamide 6.6 heat stabilized (PA66HS)
• Operating Temperature: -40°F to +257°F (-40°C to +125°C)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Bundle Diameter Max. (Imperial): 1.97"
• Bundle Diameter Max. (Metric): 50.0 mm
• Bundle Diameter Min. (Imperial): 0.2"
• Bundle Diameter Min. (Metric): 5.0 mm
• Cable Tie Closure: plastic pawl
• Disc Diameter (Imperial): 0.71"
• Disc Diameter (Metric): 18.0 mm
• Fixation Method: Fir tree for round holes
• Focused Markets and Industries: Automotive Industry
• Height H (Imperial): 0.05"
• Height H (Metric): 1.2 mm
• Height H2 (Imperial): 0.5"
• Height H2 (Metric): 12.1 mm
• Length L (Imperial): 8.0"
• Length L (Metric): 202.0 mm
• Length L2 (Imperial): 0.5"
• Length L2 (Metric): 12.0 mm
• Length L3 (imperial): 0.8"
• Length L3 (metric): 18.6 mm
• Material Cable Tie: Polyamide 6.6 heat stabilized (PA66HS)
• Material Edge Clip: Polyamide 6.6 heat stabilized (PA66HS)
• Material Shortcut Cable Tie: PA66HS
• Material Shortcut Foot Part: PA66HS
• Mounting Hole Diameter D (Imperial): 0.38 - 0.39"
• Mounting Hole Diameter D (Metric): 9.7 - 10.0 mm
• Mounting Hole Diameter D Max. (Imperial): 0.39"
• Mounting Hole Diameter D Max. (Metric): 10.0 mm
• Mounting Hole Diameter D Min. (Imperial): 0.38"
• Mounting Hole Diameter D Min. (Metric): 9.7 mm
• Mounting Hole Shape: Round
• Panel Thickness (Imperial): 0.03 - 0.20"
• Panel Thickness (Metric): 0.8 - 5.0 mm
• Panel Thickness Max. (Imperial): 0.20"
• Panel Thickness Max. (Metric): 5.0 mm
• Panel Thickness Min. (Imperial): 0.03"
• Panel Thickness Min. (Metric): 0.8 mm
• Recommended Application Tool: 110-03500; 110-05005; 110-06000; 110-07000; 110-07101; 110-70083; 110-70084; 110-80000; 110-80001
• Releasable Closure: No
• Tensile Strength Min. (Imperial): 50 lbs
• Tensile Strength Min. (kgf): 22.94 kgf
• Tensile Strength Min. (Metric): 225 N
• Toothing (Serration): Inside Serrated
• Variant: Inside Serrated
• Width W (Imperial): 0.18"
• Width W (Metric): 4.6 mm
• Width W2 (Imperial): 0.5"
• Width W2 (Metric): 11.6 mm
• Width W3 (Imperial): 0.2"
• Width W3 (Metric): 5.0 mm
• CE Certified: No
• CSA Certified: No
• Flammability: UL 94 V-2
• Prop65 Warning: No
• REACH Conformity: No
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306269625

Overview

HellermannTyton’s fir tree mounts provide a secure grip in a mounting hole. The mount can slide along the cable tie to adjust orientation as needed. Fir tree mounts are designed to provide a low insertion force and high extraction force. This mount is sold as an assembly with the cable tie.
