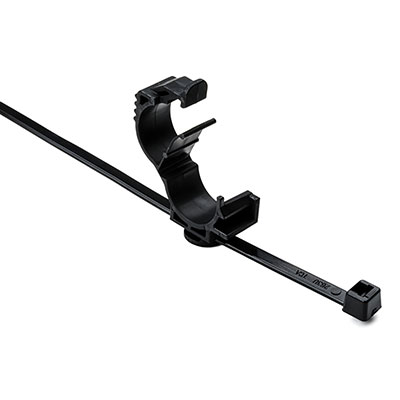

HellermannTyton 156-01093 Cable Ties

LOC Locking Clamp 10-14mm Assembled with T50R PA66HIRHS Black 2000/ctn

Features

• The 360 degree enclosure ensures the entire bundle is secure when being routed by this clip.
• Locking tab on this clip is small enough that it will not interfere with any other portion of the wire routing, but is significant enough to allow for manual disengagement if service is needed.
• The cable tie portion of this two-piece design allows for two wire bundles to be routed with the same piece.
• Product Type: LOC Cable Ties

Technical Specifications

• Material: Polyamide 6.6 heat stabilized (PA66HS);Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
• Operating Temperature: -40°F to +230°F (-40°C to +110°C)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Attaches to Diameter (Metric): 10.0 - 14.0 mm
• Bundle Diameter Max. (Imperial): 0.55"
• Bundle Diameter Max. (Metric): 14.0 mm
• Bundle Diameter Min. (Imperial): 0.39"
• Bundle Diameter Min. (Metric): 10.0 mm
• Cable Diameter Max. (Imperial): 1.97"
• Cable Diameter Max. (Metric): 50.0 mm
• Cable Diameter Min. (Imperial): 0.20"
• Cable Diameter Min. (Metric): 5.0 mm
• Depth D (Imperial): 0.42"
• Depth D (Metric): 10.75 mm
• Fixation Method: Omega Clip
• Focused Markets and Industries: Automotive Industry
• Height H (Imperial): 1.72"
• Height H (Metric): 43.75 mm
• Length L (Imperial): 1.72"
• Length L (Metric): 43.73 mm
• Length L2 (Imperial): 2.5"
• Length L2 (Metric): 63.6 mm
• Nominal Bundle Diameter ND (imperial): 0.39" - 0.55"
• Nominal Bundle Diameter ND (metric): 10.0 mm - 14.0 mm
• Tensile Strength Min. (Imperial): 50 lbs
• Tensile Strength Min. (kgf): 22.43 kgf
• Tensile Strength Min. (Metric): 220 N
• Width W (Imperial): 0.47"
• Width W (Metric): 12.0 mm
• CE Certified: No
• CSA Certified: No
• Halogen Free: Yes
• Hazardous Goods: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306354727

Overview

HellermannTyton's two-piece cable tie assembly offers dual bundle routing. The omega clip portion creates a full and secure lock completely around one bundle, while the cable tie creates a secure solution for a second bundle.
