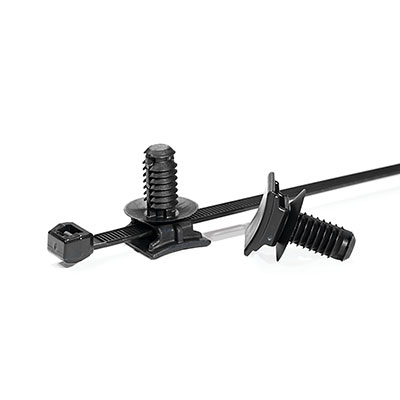

HellermannTyton 156-01520 Cable Ties

2-Piece Cable Tie with Fir Tree Mount 15" L 0.35" (9mm) Hole 120lb PA66HS/PA66HIRHSUV Black 500 per Package

Features

• The “H” profile provides a broad surface contact to minimize the pinching of bundles.
• Heavy duty fir tree mounts are equipped with a friction tab that will hold the tie in the mount, allowing them to be preassembled prior to installation.
• Designed specifically for HellermannTyton 120 - 250 lb cable ties for heavy duty applications.
• Product Type: Fir Tree Mount Cable Ties

Technical Specifications

• Material: Polyamide 6.6 heat stabilized (PA66HS);Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
• Operating Temperature: -40°F to +221°F (-40°C to +105°C)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Bundle Diameter Max. (Imperial): 4.13"
• Bundle Diameter Max. (Metric): 105.0 mm
• Bundle Diameter Min. (Imperial): 0.2"
• Bundle Diameter Min. (Metric): 5.0 mm
• Cable Tie Closure: plastic pawl
• Fixation Method: Fir tree for round holes
• Focused Markets and Industries: Automotive Industry
• Height H (Imperial): 1.15"
• Height H (Metric): 29.2 mm
• Height H2 (Imperial): 0.73"
• Height H2 (Metric): 18.40 mm
• Length L (Imperial): 15.0"
• Length L (Metric): 383.5 mm
• Mounting Hole Diameter D (Imperial): 0.34 - 0.36"
• Mounting Hole Diameter D (Metric): 8.7 - 9.2 mm
• Mounting Hole Diameter D Max. (Imperial): 0.36"
• Mounting Hole Diameter D Max. (Metric): 9.2 mm
• Mounting Hole Diameter D Min. (Imperial): 0.34"
• Mounting Hole Diameter D Min. (Metric): 8.7 mm
• Mounting Hole Shape: Round
• Panel Thickness (Imperial): 0.04 - 0.62"
• Panel Thickness (Metric): 1.0 - 15.8 mm
• Panel Thickness Max. (Imperial): 0.62"
• Panel Thickness Max. (Metric): 15.8 mm
• Panel Thickness Min. (Imperial): 0.04"
• Panel Thickness Min. (Metric): 1.0 mm
• Recommended Application Tool: 110-05005; 110-80003
• Releasable Closure: No
• Tensile Strength Min. (Imperial): 120 lbs
• Tensile Strength Min. (kgf): 54.56 kgf
• Tensile Strength Min. (Metric): 535 N
• Thickness T (Imperial): 0.07"
• Thickness T (Metric): 1.8 mm
• Toothing (Serration): Outside Serrated
• Variant: Outside Serrated
• Width W (Imperial): 0.30"
• Width W (Metric): 7.6 mm
• CE Certified: No
• CSA Certified: No
• Flammability: UL 94 HB
• Prop65 Warning: No
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306385967

Overview

HellermannTyton Heavy Duty Fir Tree Mounts are designed with extreme applications in mind. They are optimized for up to 3-to-1 extraction versus insertion force to make assembly fast and easy. These mounts are sold as an assembly with a cable tie.
