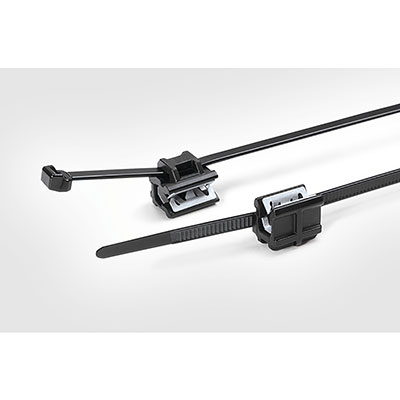

HellermannTyton 156-01546 Cable Ties

2-Piece Cable Tie/Edge Clip 5.7"L 0.5–2.5 mm Panel Perpendicular 30lb PA66HS/PA66HIRHS BK 500 per Package

Features

• Low-profile clip attaches easily to plastic and metal edges as thin as 0.
• 5 mm and up to 2.
• 5 mm without the need for a mounting hole.
• Two designs allow bundles to be secured parallel or vertical to surface edges.
• Provides low insertion force and high extraction force - ideal for assembly environments.
• Two-piece assembly allows the mount to slide along the strap, ensuring proper orientation.
• Cable tie is outside serrated to reduce bundle chafing.
• Product Type: Edge Clip Cable Ties

Technical Specifications

• Material: Polyamide 6.6 heat stabilized (PA66HS);Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
• Operating Temperature: -40°F to +221°F (-40°C to +105°C)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Bundle Diameter Max. (Imperial): 1.18"
• Bundle Diameter Max. (Metric): 30 mm
• Bundle Diameter Min. (Imperial): 0.12"
• Bundle Diameter Min. (Metric): 3.0 mm
• Fixation Method: EdgeClip, sideway, assembled, 2 piece
• Focused Markets and Industries: Automotive Industry; Electronics Industry; Solar Energy Sector; Food Industry
• Height H (Imperial): 0.05"
• Height H (Metric): 1.2 mm
• Height H2 (Imperial): 0.43"
• Height H2 (Metric): 12.6 mm
• Length L (Imperial): 5.7"
• Length L (Metric): 145.0 mm
• Length L2 (Imperial): 0.51"
• Length L2 (Metric): 13.0 mm
• Material Cable Tie: Polyamide 6.6 heat stabilized (PA66HS)
• Material Edge Clip: Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
• Material Shortcut Cable Tie: PA66HS
• Material Shortcut Foot Part: PA66HIRHS
• Panel Thickness (Imperial): 0.02 - 0.10"
• Panel Thickness (Metric): 0.5 - 2.5 mm
• Panel Thickness Max. (Imperial): 0.10"
• Panel Thickness Max. (Metric): 2.5 mm
• Panel Thickness Min. (Imperial): 0.02"
• Panel Thickness Min. (Metric): 0.5 mm
• Recommended Application Tool: 110-05005; 110-70083; 110-70084
• Tensile Strength Min. (Imperial): 30 lbs
• Tensile Strength Min. (kgf): 13.56 kgf
• Tensile Strength Min. (Metric): 133 N
• Toothing (Serration): Outside Serrated
• Variant: Outside Serrated
• Width W (Imperial): 0.13"
• Width W (Metric): 3.4 mm
• Width W2 (Metric): 10.8 mm
• CE Certified: No
• CSA Certified: No
• Flammability: UL 94 HB
• Hazardous Goods: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306441557

Overview

HellermannTyton's Two Piece Edge Clip with Cable Tie Assemblies are designed specifically to route bundles by securing them to the edge of a plastic or metal sheet without the need for a mountinig hole. The clip is easy to secure and the extraction force is high due to the integrated metal clamp that holds the edge clip in place.
