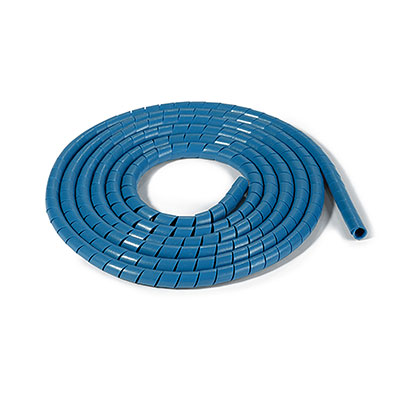

Spiralwrap Metal-Content 0.63" Diameter PE/SS Blue 98 ft/roll
Features
Industry standard blue color assists with visual detection and reduces the risk of contamination.
High stainless-steel content is both detectable and corrosion resistant.
Open design accommodates breakouts at any point along the bundle.
Spiral design makes it suitable for retro-fitting.
Product Type: Spiralwrap - Special Materials
Technical Specifications
Material: Polyethylene (PE);Stainless Steel (SS)
Operating Temperature: -76°F to +176°F (-60°C to +80°C)
Color: Blue (BU)
Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
Use Conditions: For Indoor and Outdoor Use
Bundle Diameter Max. (Imperial): 5.91"
Bundle Diameter Max. (Metric): 150 mm
Bundle Diameter Min. (Imperial): 0.79"
Bundle Diameter Min. (Metric): 20 mm
Diameter D (Imperial): 0.63"
Diameter D (Metric): 16 mm
Focused Markets and Industries: Food Industry
Nominal Diameter (Imperial): 0.63"
Nominal Diameter (Metric): 16 mm
Pitch (imperial): 0.63"
Pitch (metric): 16.0 mm
Reel Length (imperial): 98.4 ft
Reel Length (metric): 30 m
Trade Size: 5/8"
Variant: Spiral Binding
Wall Thickness WT (Imperial): 0.063"
Wall Thickness WT (Metric): 1.6 mm
CE Certified: No
CSA Certified: No
Flammability: UL 94 HB
Halogen Free: Yes
Hazardous Goods: No
Prop65 Warning: No
REACH Conformity: Yes
ROHS Compliant: Yes
UL Listed (US): No
UL Listed (US and Canada): No
UL Recognized (US): No
UL Recognized (US and Canada): No
UV Resistant (Yes/No): No
UPC: 089306432708
Overview
SBPEMC provides flexible, durable cable and hose protection. It is ideal for food-processing machines and related environments. Protects against abrasion, making it appropriate for applications where movement is an issue.
