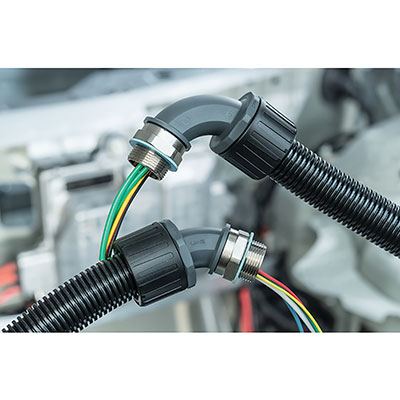

HelaGuard Non-Metallic IP66 Fitting 90-Elbow NPT Thread 0.75" Dia PA66 Black 10 per Package
Features
External NPT thread provides a secure connection.
Snap-on construction reduces installation time and costs by eliminating the need to thread fittings onto conduits.
Elbow features a smooth, swept bore to ease cable installation.
All-around "teeth" attach firmly to conduit and deliver a high extraction force.
Durable nylon material has high resistance to salts, oils, weak acids and solvents.
IP66 fitting has one-piece construction.
Product Type: Non-Metallic Fittings
Technical Specifications
Material: Polyamide 6.6 (PA66)
Operating Temperature: -58°F to +275°F (-50°C to +135°C)
Color: Black (BK)
Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
Use Conditions: For Indoor and Outdoor Use
Bore Diameter (Imperial): 0.75"
Bore Diameter (Metric): 19.0 mm
Clearance Hole Diameter (Imperial): 1.039"
Clearance Hole Diameter (Metric): 26.4 mm
Connection Type: Snap-connection
Focused Markets and Industries: Electronics Industry
Length L (Imperial): 2.60"
Length L (Metric): 66 mm
Material Fitting: Polyamide (PA)
Nominal Diameter (Imperial): 0.75"
Nominal Diameter (Metric): 28 mm
Outside Diameter OD (imperial): 1.73"
Outside Diameter OD (metric): 44 mm
Swivel Thread (Y/N): No
Thread Length (Imperial): 0.59"
Thread Length (metric): 15 mm
Thread Type: NPT
Trade Size: 3/4"
Variant: 90° Elbow
CE Certified: No
CSA Certified: No
Flammability: UL 94 V-2
Halogen Free: Yes
IP-Rating: IP66
Prop65 Warning: No
REACH Conformity: Yes
ROHS Compliant: Yes
UL-File Number + Logo: E229161 [cRUus]
UL Listed (US): No
UL Listed (US and Canada): No
UL Recognized (US): Yes
UL Recognized (US and Canada): Yes
UV Resistant (Yes/No): No
UPC: 089306371199
Overview
HelaGuard Non-Metallic 90-Degree Elbow fitting features a snap-on design that provides a quick, secure connection. Constructed of a very durable nylon material with a high resistance to salts, oils, weak acids and solvents. Designed for easy removal with a small screwdriver. IP66 ingress protection rated fittings.
