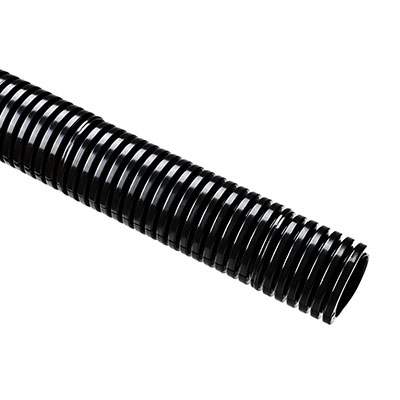

HelaGuard Non-Metallic Conduit Std. Weight 0.38" Dia Nylon PA6 Slit Black 100 ft/Std. Reel
Features
Material is easy to use and cut; reduces installation time and labor costs.
Flexible, abrasion resistant and durable for a variety of applications.
Good impact strength; recovers quickly if crushed.
UV resistant; suitable for use in outdoor applications.
Offered in fine or course corrugated pitch.
Offered with or without slit; slit options offer easy access during installation and maintenance.
Product Type: Non-Metallic Conduit
Technical Specifications
Material: Polyamide 6 (PA6)
Operating Temperature: -40°F to +248°F (-40°C to +120°C)
Color: Black (BK)
Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
Use Conditions: For Indoor Use Only
Focused Markets and Industries: Electronics Industry; Solar Energy Sector
Inner Diameter ID (Imperial): 0.47"
Inner Diameter ID (metric): 11.8 mm
Inside Bend Radius (Imperial): 1.38"
Inside Bend Radius (Metric): 35 mm
Length L (Imperial): 100.0 ft
Length L (Metric): 30.5 m
Nominal Diameter (Imperial): 0.38"
Nominal Diameter (Metric): 16 mm
Outside Diameter OD (imperial): 0.63"
Outside Diameter OD (metric): 15.8 mm
Pitch Type: F (Fine)
Trade Size: 3/8"
CE Certified: No
CSA Certified: No
Flammability: UL 94 V-2
Halogen Free: Yes
Prop65 Warning: No
REACH Conformity: Yes
ROHS Compliant: Yes
UL Listed (US): No
UL Listed (US and Canada): No
UL Recognized (US): No
UL Recognized (US and Canada): No
UV Resistant (Yes/No): No
UPC: 089306369615
Overview
A standard weight corrugated conduit made of PA6 nylon that offers flexible abrasion protection for wire and cable bundles. Easy to cut and use, the material is highly resistant to solvents and oils. Combine with HelaGuard non-metallic fittings for IP66 rating or greater protection against water, wind and dirt.
