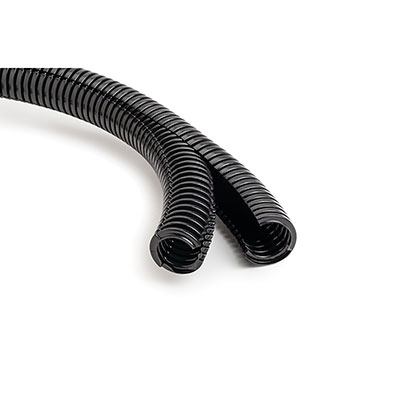

HelaGuard Non-Metallic Conduit Double Slit Low Fire Hazard 0.38" Dia Nylon PA6FR Black 164 ft/Reel
Features
Overlapping conduit design increases mechanical protection and eliminates unintentional exposure of wires caused by motion, vibration or when routed around corners.
Material is easy to use and cut; reduces installation time and labor costs.
Good impact strength; recovers quickly if crushed.
Product Type: Non-Metallic Conduit
Technical Specifications
Material: Polyamide 6, flame retardant (PA6FR)
Operating Temperature: -40°F to +248°F (-40°C to +120°C)
Color: Black (BK)
Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
Use Conditions: For Indoor Use Only
Focused Markets and Industries: Electronics Industry
Inner Diameter ID (Imperial): 0.41"
Inner Diameter ID (metric): 10.3 mm
Inside Bend Radius (Imperial): 3.94"
Inside Bend Radius (Metric): 100 mm
Length L (Imperial): 164.0 ft
Length L (Metric): 50 m
Nominal Diameter (Imperial): 0.38"
Nominal Diameter (Metric): 16 mm
Outside Diameter OD (imperial): 0.63"
Outside Diameter OD (metric): 15.8 mm
Pitch Type: F (Fine)
Reel Length (imperial): 164.0 ft
Reel Length (metric): 50.0 m
CE Certified: No
CSA Certified: No
Flammability: UL 94 V-0
Halogen Free: Yes
Prop65 Warning: No
REACH Conformity: Yes
ROHS Compliant: Yes
UL Listed (US): No
UL Listed (US and Canada): No
UL Recognized (US): No
UL Recognized (US and Canada): No
UV Resistant (Yes/No): No
UPC: 089306468745
Overview
A low-fire-hazard, corrugated two-piece conduit, each of which is slit open to ease installation and maintenance of wire and cable bundles. The interlocking construction is excellent for retrofitting projects. PA6FR material is highly flame retardant, resistant to solvents and oils and offers excellent abrasion resistance. Combine with HelaGuard Non-Metallic Fittings for IP66 rating or greater protection against water, wind and dirt.
