Hammond Manufacturing 166G12 Power Transformers

Hammond Manufacturing Rohs logo
166G12 Power Transformers

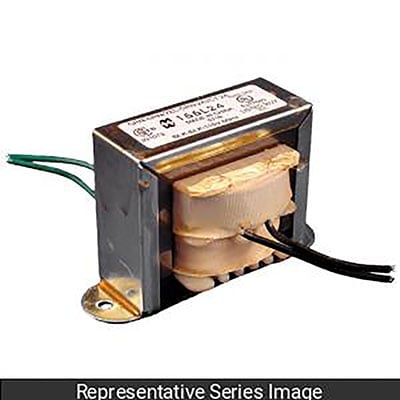

View larger image

  • Low Voltage/Filament Power Transformer 115V Economical Single Primary 12.6V CT Secondary 6.3VA Wires Open Style Chassis Mount
  • Jameco Part no.: 2293159
  • Manufacturer: Hammond Manufacturing
  • Manufacturer p/n: 166G12
  • NCNR (Non-Cancelable, Non-Returnable)
  • HTS code: 8504.31.4035
You May Also Like
29225-R 29225-R
Jameco ReliaPro
$14.95
102111-R 102111-R
Jameco ReliaPro
$15.95
PT-50466-R PT-50466-R
Jameco ReliaPro
$14.95
AC463-1.2-R AC463-1.2-R
Jameco ReliaPro
$11.95
SPW2304 SPW2304
Jameco ReliaPro
$6.00
TR4820-91-R TR4820-91-R
Jameco ReliaPro
$12.95

$22.15 ea

158 ship on Sep. 21

+ Add to my favorites
# of units Price
1+ $22.15
5+ $20.95
25+ $19.95
100+ $19.15

Request Larger Quantity Quote

Low Voltage/Filament Power Transformer 115V Economical Single Primary 12.6V CT Secondary 6.3VA Wires Open Style Chassis Mount

Features

  • Economical single primary 115 VAC, 60 Hz.
  • Most secondaries are center tapped (C.T.), VAC (RMS)
  • Open style, channel bracket, two hole chassis mount
  • Minimum 6" long leads
  • Dual bobbin design - no electrostatic shield required
  • We use Class B insulation (130°C) for extra protection - UL listed as a Class A (105°C) design
  • Hi-Pot test of 2,000V RMS
  • UL listed & CSA certified

Specifications

  • Primary: Single 115 VAC
  • Secondary: 12.6 VAC CT
  • Current: 0.5 A
  • Power rating: 6.3 VA
  • Length: 2.81"
  • Width: 1.50"
  • Height: 1.69"


Report a problem
Suggest a product
Specification Value
Product TypePower Transformer
Manufacturer Series166
Power Rating6.3 VA
Primary Side Voltage115 VAC
Primary Frequency60 Hz
Secondary Side Voltage12.6 V CT
Secondary Side Current0.5 A
Termination StyleWires
Mounting StyleChassis
Center TapYes
Core TypeDual Bobbin
Primary Side ConnectionWires
Secondary Side ConnectionWires
Agency ApprovalsUL, CSA
