Hammond Manufacturing 167L55 Power Transformers

Hammond Manufacturing Rohs logo

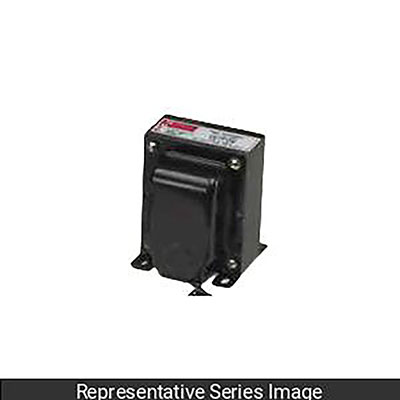

167L55 Power Transformers

View larger image

  • Power Transformer Low Voltage Enclosed Chassis Mount 110VA 115 55Vct
  • Jameco Part no.: 2574239
  • Manufacturer: Hammond Manufacturing
  • Manufacturer p/n: 167L55
  • NCNR (Non-Cancelable, Non-Returnable)
  • HTS code: 8504.31.4065
  • No datasheet available. Please review the tabs below for product specifications.
You May Also Like
29225-R 29225-R
Jameco ReliaPro
$14.95
102111-R 102111-R
Jameco ReliaPro
$15.95
PT-50466-R PT-50466-R
Jameco ReliaPro
$14.95
AC463-1.2-R AC463-1.2-R
Jameco ReliaPro
$11.95
SPW2304 SPW2304
Jameco ReliaPro
$6.00
TR4820-91-R TR4820-91-R
Jameco ReliaPro
$12.95

$47.85 ea

2 ship on Sep. 22

+ Add to my favorites
# of units Price
1+ $47.85
5+ $45.45
25+ $43.25
100+ $41.45

Request Larger Quantity Quote

Power Transformer Low Voltage, Enclosed Chassis Mount, 110VA 115 55Vct

Features

  • Material: N/A
  • Standards: csa, ul
  • Power Rating (VA): 110
  • Primary VAC: 115 VAC, 60 Hz.
  • Secondary (RMS) VAC: 55 C.T.
  • Secondary (RMS) Amps: 2
  • USMCA Compliant: Yes
  • RoHS Compliant: Yes
  • REACH Compliant: Yes
  • ECCN: EAR99

Overview

Power transformer, low voltage, enclosed chassis mount, 110VA 115 55VCT.

Resources & Downloads



    Report a problem
    Suggest a product
    Specification Value
    Product TypeFilament Low Voltage
    Manufacturer Series167
    Power Rating110 VA
    Primary Side Voltage115 VAC
    Primary Frequency60 Hz
    Secondary Side Voltage55 C.T.
    Secondary Side Current2 A
    Termination StyleWires
    Mounting StyleChassis
    Center TapYes
    Core TypeDual Bobbin
    Output Connector TypeWires
    Primary Side ConnectionWires
    Secondary Side ConnectionWires
    Agency ApprovalsUL, CSA
    ComplianceCompliance Docs
