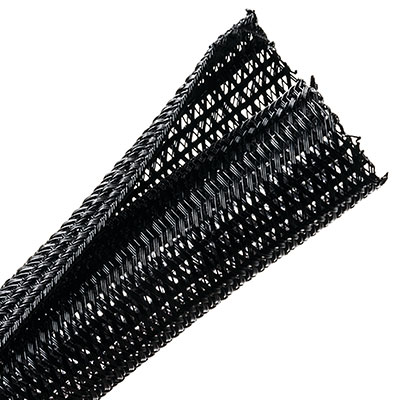

HellermannTyton 170-03133 Bulk Wire Wrap Wire

Braided Sleeving Split Wrap 0.25" Dia PET Black 3000 ft/bulk reel

Features

• Center-slit overlapping design allows quick and easy access to the wires and cables for future maintenance or inspection without disassembly.
• Flexible material allows it to easily wrap around a variety of component shapes and sizes, making it easier to use than slit-loom tubing or spiral-wrap materials.
• A unique weave pattern provides increased coverage and greater resistance to abrasion, dust and debris.
• Overlapping design enhances flexibility, allowing it to shift and bend without exposing wire and cables.
• Product Type: Braided Sleeving - Wraps

Technical Specifications

• Material: Polyester (PET)
• Operating Temperature: -94°F to +257°F (-70°C to +125°C)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Abrasion Resistance: Medium
• Bundle Diameter Max. (Imperial): 0.25"
• Bundle Diameter Max. (Metric): 6.4 mm
• Bundle Diameter Min. (Imperial): 0.1"
• Bundle Diameter Min. (Metric): 2.54 mm
• Diameter D (Imperial): 0.25"
• Diameter D (Metric): 6.4 mm
• Length L (Imperial): 3000.0 ft
• Length L (Metric): 91.4 m
• Melting Point: +482 °F (+250 °C)
• Nominal Diameter (Imperial): 0.25"
• Nominal Diameter (Metric): 6.4 mm
• Recommended Cutting Tools USA: Hot Knife
• Reel Length (imperial): 3000.0 ft
• Reel Length (metric): 914.4 m
• Trade Size: 1/4"
• Wall Thickness WT (Imperial): 0.025"
• Wall Thickness WT (Metric): 0.64 mm
• CE Certified: No
• CSA Certified: No
• Flammability: UL 94 V-0
• Halogen Free: Yes
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL-File Number + Logo: E147924 [RU]
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): Yes
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): Yes
• UPC: 089306345114

Overview

A lateral split semi-rigid braided sleeving configuration used when ease of installation and repeat access to wire bundle is required. The lateral split allows the sleeving to open and accommodate a variety of bundling requirements. The 25% edge overlap rolls back over connectors and splices without exposing the bundled wires.
