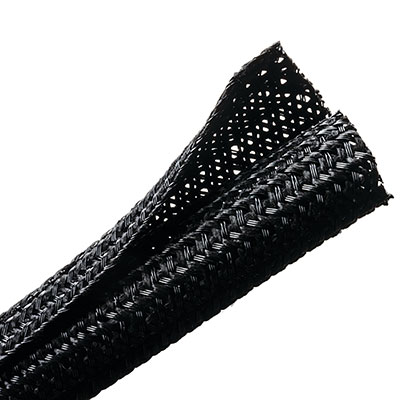

Braided Sleeving Split Wrap Flame Retardant 0.125" Dia PET Black 400 ft/bulk reel
Features
Split wrap design installs quickly, saving assembly time and future accessibility without disassembly.
Unique construction retains shape and rigidity throughout operating temperature range.
Easy open design allows quick assembly, future access, and ability to apply protective sleeving post assembly or post installation situations.
Self wrapping design eliminates the need for fasteners.
Provides a greater flexibility than spiralwrap or convoluted tubing.
Product Type: Braided Sleeving - Flame Retardant
Technical Specifications
Material: Polyester (PET)
Operating Temperature: -94°F to +257°F (-70°C to +125°C)
Color: Black (BK)
Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
Use Conditions: For Indoor Use Only
Abrasion Resistance: High
Bundle Diameter Max. (Imperial): 0.13"
Bundle Diameter Max. (Metric): 3.2 mm
Bundle Diameter Min. (Imperial): 0.1"
Bundle Diameter Min. (Metric): 2.54 mm
Diameter D (Imperial): 0.13"
Diameter D (Metric): 3.2 mm
Length L (Imperial): 400.0 ft
Length L (Metric): 121.9 m
Melting Point: +446 °F (+230 °C)
Nominal Diameter (Imperial): 0.125"
Nominal Diameter (Metric): 3.18 mm
Recommended Cutting Tools USA: Hot Knife
Reel Length (imperial): 400.0 ft
Reel Length (metric): 121.9 m
Trade Size: 1/8"
Wall Thickness WT (Imperial): 0.024"
Wall Thickness WT (Metric): 0.61 mm
CE Certified: No
CSA Certified: No
Flammability: UL 224 VW-1; FAR 25
Halogen Free: Yes
Prop65 Warning: No
REACH Conformity: Yes
ROHS Compliant: Yes
UL-File Number + Logo: E107055 [RU]
UL Listed (US): No
UL Listed (US and Canada): No
UL Recognized (US): Yes
UL Recognized (US and Canada): No
UV Resistant (Yes/No): No
UPC: 089306345152
Overview
Used when flame retardancy is a primary requirement, this protection option incorporates a lateral split which allows the tube to open up to accommodate a variety of bundling requirements. The semi-rigid braid configuration simply closes around the entire installation without the need for any additional fasteners. Split wrap flame retardant braided sleeving is self-extinguishing and complies with UL VW-1 standards where cables exit a wall and need to be managed for an uncluttered, clean appearance.
