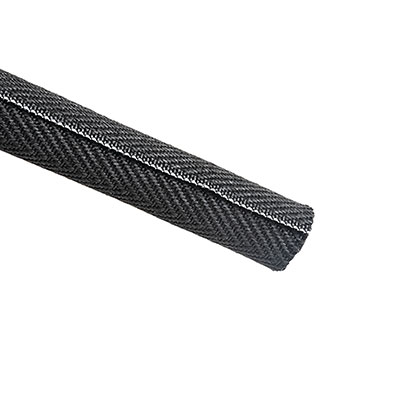

Braided Sleeving Split Wrap Woven Flame Retardant 3/4" Dia PET Black 150 ft/bulk reel
Features
Split wrap design needs no fasteners and installs quickly, saving assembly time and future accessibility without disassembly.
Bends to a tight radius without distortion or splitting open.
Unique construction retains shape and rigidity throughout unrolling.
Added flame-inhibitor fibers extinguish quickly and reduces potential flame spread to surrounding components.
Easy open design allows quick access and ability to apply protective sleeving post assembly or post installation situations.
Product Type: Braided Sleeving - Wraps
Technical Specifications
Material: Polyester (PET)
Operating Temperature: -94°F to +257°F (-70°C to +125°C)
Color: Black (BK)
Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
Use Conditions: For Indoor Use Only
Abrasion Resistance: Medium
Bundle Diameter Max. (Imperial): 0.75"
Bundle Diameter Max. (Metric): 19.1 mm
Bundle Diameter Min. (Imperial): 0.1"
Bundle Diameter Min. (Metric): 2.54 mm
Diameter D (Imperial): 0.75"
Diameter D (Metric): 19.1 mm
Length L (Imperial): 150.0 ft
Length L (Metric): 45.7 m
Melting Point: +482 °F (+250 °C)
Nominal Diameter (Imperial): 0.75"
Nominal Diameter (Metric): 19.1 mm
Reel Length (imperial): 150.0 ft
Reel Length (metric): 45.72 m
Trade Size: 3/4"
Wall Thickness WT (Imperial): 0.027"
Wall Thickness WT (Metric): 0.68 mm
CE Certified: No
CSA Certified: No
Flammability: UL VW-1
Halogen Free: Yes
Prop65 Warning: No
REACH Conformity: Yes
ROHS Compliant: Yes
UL-File Number + Logo: E107055 [RU]; E107055 [cURus]
UL Listed (US): No
UL Listed (US and Canada): No
UL Recognized (US): Yes
UL Recognized (US and Canada): Yes
UV Resistant (Yes/No): No
UPC: 089306444756
Overview
A lateral split, semi-rigid and flame retardant braided sleeving configuration used when ease of installation and repeat access to wire bundle is required. The lateral split allows the sleeving to open and accommodate a variety of bundling requirements. The 25% edge overlap rolls back over connectors and splices without exposing the bundled wires. More flexible than spiral wraps or convoluted tubing, this product is a fast and easy option for adding protection in post-assembly or post-installation applications. Meets NFPA 130 rail market applications.
