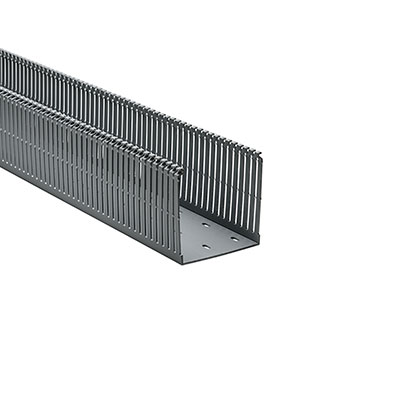

HellermannTyton 181-00667 Wiring Duct

High Density Slotted Wall Wiring Duct 4" x 4" Adhesive PVC Gray 120ft per Carton

Features

• Narrow fingers reduce fanning of wires to terminal blocks, providing a neater appearance.
• Each finger features a double restriction to hold wires in the bottom portion of the duct, simplifying installation.
• Mounting holes are uniform in size to those in slotted and solid wall duct but are provided every two inches to accommodate compact designs and provide ease of installation.
• Nonpermanent adhesive allows repositioning prior to final installation.
• Product Type: High Density Slotted Duct and Covers

Technical Specifications

• Material: Polyvinylchloride (PVC)
• Operating Temperature: +122°F (+50°C)
• Color: Gray (GY)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor Use Only
• Fixation Method: Adhesive
• Height H (Imperial): 4.07"
• Height H (Metric): 103.4 mm
• Length L (Imperial): 6.0 ft
• Length L (Metric): 1.83 m
• Mounting Hole Centers (Imperial): 2.0"
• Mounting Hole Centers (Metric): 50.8 mm
• Self extinguishing (Yes/No): Yes
• Width W (Imperial): 4.0"
• Width W (Metric): 101.6 mm
• Width W2 (Imperial): 4.0"
• Width W2 (Metric): 101.6 mm
• Width W3 (Imperial): 0.16"
• Width W3 (Metric): 4.1 mm
• Width W4 (imperial): 0.4"
• Width W4 (metric): 10.2 mm
• Width W5 (imperial): 3.6"
• Width W5 (metric): 91.4 mm
• Width W6 (imperial): 1.5"
• Width W6 (metric): 38.1 mm
• CE Certified: Yes
• CSA Certified: Yes
• Halogen Free: No
• Prop65 Warning: No
• REACH Conformity: No
• ROHS Compliant: Yes
• UL-File Number + Logo: E64139 [RU]
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): Yes
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306393061

Overview

HellermannTyton High-Density Slotted Wall Wiring Duct features narrow fingers equaling a 2-to-1 finger ratio compared to standard slotted wiring duct. With the narrow fingers, compact designs and components are more easily accommodated.
