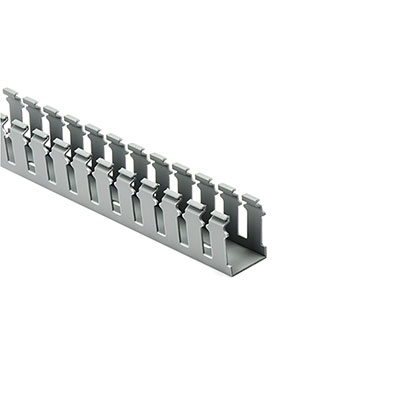

HellermannTyton 181-15207 Wiring Duct

Slotted Wall Wiring Duct 1.5" x 2" Non-Adhesive PVC Gray 120ft per Carton

Features

• Strong fingers prevent unwanted breaking.
• Restricted opening prevents unintended removal of wires and permits any individual wire to be traced without disconnection.
• Supplied with mounting holes to streamline installation.
• Optional covers enhance protection and appearance.
• Product Type: Slotted Wall Duct and Covers

Technical Specifications

• Material: Polyvinylchloride (PVC)
• Operating Temperature: +122°F (+50°C)
• Color: Gray (GY)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor Use Only
• Fixation Method: Non-Adhesive
• Height H (Imperial): 2.07"
• Height H (Metric): 52.6 mm
• Length L (Imperial): 6.0 ft
• Length L (Metric): 1.83 m
• Mounting Hole Centers (Imperial): 4.0"
• Mounting Hole Centers (Metric): 101.6 mm
• Self extinguishing (Yes/No): Yes
• Width W (Imperial): 1.5"
• Width W (Metric): 38.1 mm
• Width W2 (Imperial): 1.5"
• Width W2 (Metric): 38.1 mm
• Width W3 (Imperial): 0.4"
• Width W3 (Metric): 10.2 mm
• Width W4 (imperial): 1.0"
• Width W4 (metric): 25.4 mm
• Width W5 (imperial): 1.6"
• Width W5 (metric): 40.6 mm
• CE Certified: Yes
• CSA Certified: Yes
• Halogen Free: No
• Prop65 Warning: No
• REACH Conformity: No
• ROHS Compliant: Yes
• UL-File Number + Logo: E64139 [RU]
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): Yes
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306291862

Overview

HellermannTyton Slotted Wall Wiring Duct features break-away fingers that provide additional access for wire leads. Each section of the duct is provided with two score lines. The upper score line is used to break away fingers when a greater opening is required. The lower score line allows the sidewall to be smoothly cut for joints and T’s.
