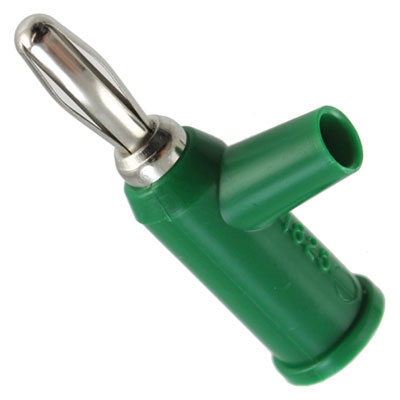

Green Standard Solderless Stackable Banana Plug with Safety Collar (Bag of 10)
Features
Designed to fit on the end of any 22 AWG to 18 AWG wire
Cross hole wire entry fits wires up to .12" (3mm) diameter
Set screw simplifies assembly of test leads and jumpers by using a flat blade screwdriver
Fits standard panel and binding post banana jacks .161" to .166" (4mm to 4.2mm) diameter
Banana jack: Beryllium Copper, Gold-plated
Banana Plug: Body - Brass, Nickel-plated; Spring - Beryllium Copper, Nickel-plated
Insulation: Polypropylene
Set screw: Steel, Zinc Plated, 8-32 Single Slot
Voltage rating: 5000Vrms max.
Current rating: 15 Amps
Maximum operating temperature: +122°F (+50°C) max
Dimensions: 1.55"L x 0.44" diameter
Color: Green
Sold as a bag of 10 (factory pack)
Overview
Pomona 1825 stackable banana plugs are made for safe, solderless connections and are used to connect wires to electrical devices, especially in test and measurement applications. Power supplies, multimeters, and other test devices that require a dependable and reusable connection frequently use them. Multiple connections can be made in one place thanks to the stacking architecture boosting efficiency and versatility. This product is sold in the factory bag of 10 banana plugs.
