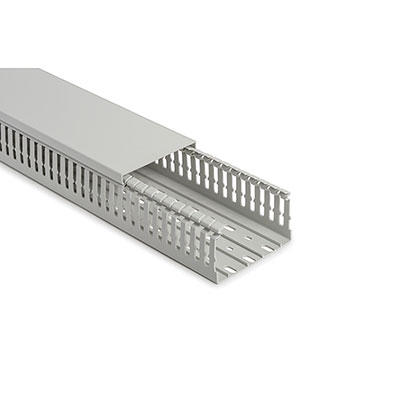

Halogen Free Slotted Wiring Duct & Cover without Adhesive 120mm x 80mm Piece/ABS Gray 16 m/Box
Features
Narrow slots suitable for small-diameter wires.
Fingers can be removed with no sharp edges at pre-notched snap-off points.
Duct covers hold securely even in a vertical position and under vibration.
Base perforation according to DIN EN 50085.
Product Type: Halogen-Free Duct and Covers
Technical Specifications
Material: Acrylonitrile Butadiene Styrene alloyed with Polycarbonate (PC/ABS)
Operating Temperature: -13°F to +194°F (-25°C to +90°C)
Color: Gray (GY)
Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
Use Conditions: For Indoor Use Only
Fixation Method: Screw Mounting
Focused Markets and Industries: Electrical Installation; Rail Transportation Sector; Panel Building; Electronics Industry; OEM Industry
Height H (Imperial): 3.15"
Height H (Metric): 80.0 mm
Length L (Imperial): 6.56 ft
Length L (Metric): 2.0 m
Self extinguishing (Yes/No): Yes
Side Wall Type: Slotted
Width W (Imperial): 4.72"
Width W (Metric): 120.0 mm
Width W2 (Imperial): 0.24"
Width W2 (Metric): 6.0 mm
Width W3 (Imperial): 0.26"
Width W3 (Metric): 6.5 mm
CE Certified: Yes
CSA Certified: Yes
EN 45545-2 Results: R22 HL2; R23 HL2
Flammability: UL 94 V-0
Halogen Free: Yes
Hazardous Goods: No
Prop65 Warning: No
REACH Conformity: Yes
ROHS Compliant: Yes
UL-File Number + Logo: E357929 [cRUus]
UL Listed (US): No
UL Listed (US and Canada): No
UL Recognized (US): Yes
UL Recognized (US and Canada): Yes
UV Resistant (Yes/No): No
UPC: 089306456599
Overview
HelaDuct HTWD-HF wiring duct is used to route and protect wires in control panels and switching systems where there are high demands on personal or material safety in case of fire, such as in public transport, tunnels, data processing centers or public buildings. Snap-on covers are included with corresponding duct sizes to ensure complete wire protection.
