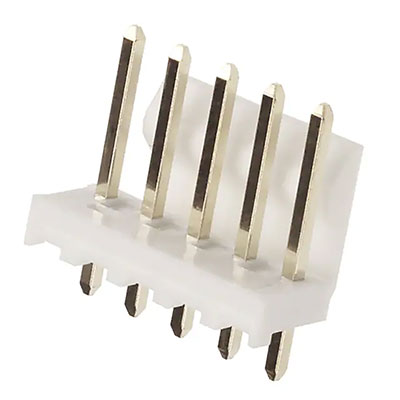

Molex 26-60-4050 Headers and PCB Receptacles

Electronic Components by: Popularity &nbsp;|&nbsp; Title &nbsp;|&nbsp; Price &nbsp;|&nbsp; Category &nbsp;|&nbsp; Manufacturer &nbsp;|&nbsp; Part No
Top Selling Electronic by: Popularity &nbsp;|&nbsp; Title &nbsp;|&nbsp; Price &nbsp;|&nbsp; Category &nbsp;|&nbsp; Manufacturer &nbsp;|&nbsp; Part No
Staff Favorites by: Popularity &nbsp;|&nbsp; Title &nbsp;|&nbsp; Price &nbsp;|&nbsp; Category &nbsp;|&nbsp; Manufacturer &nbsp;|&nbsp; Part No

No datasheet available. Please review the tabs below for product specifications.

$0.292 ea

*This product is subject to a tariff. See detail in the cart.

Series: KK396, 41791
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.156" (3.96 mm)
Number of Positions: 5
Number of Rows: 1
Number of Positions Loaded: All
Style: Board to Cable/Wire
Shrouding: Shrouded - 1 Wall
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Friction Lock
Contact Length - Mating: 0.450" (11.43 mm)
Contact Length - Post: 0.140" (3.56 mm)
Overall Contact Length: 0.720" (18.29 mm)
Insulation Height: 0.446" (11.33 mm)
Contact Shape: Square
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 60 µin (1.52 µm)
Contact Finish - Post: Tin
Contact Finish Thickness - Post: 60 µin (1.52 µm)
Insulation Material: Polyester, Glass Filled
Features: Solder Retention
Material Flammability Rating: UL94 V-0
Insulation Color: Natural
Applications: Automotive, General Purpose, Industrial, Medical, Telecommunications
Base Number: 002660
