Carling Technologies 2FA54-73 Toggle Switches

Carling Technologies
2FA54-73 Toggle

View larger image

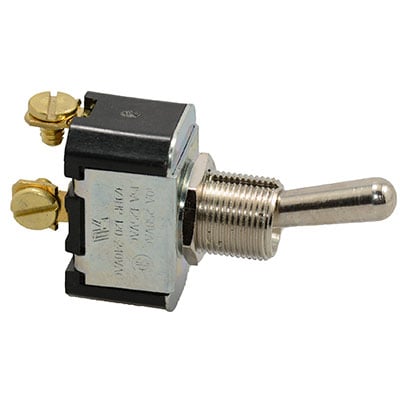

  • Toggle Switch SPST ON-OFF Rear Panel Mount 15A 125VAC Screw Terminals
  • Jameco Part no.: 2329807
  • Manufacturer: Carling Technologies
  • Manufacturer p/n: 2FA54-73
  • HTS code: 8536.50.9031
You May Also Like
MTS-103 MTS-103
Jameco ValuePro
$1.29
T203T1B1A1QN T203T1B1A1QN
Jameco ValuePro
$2.25
66-1205 66-1205
Jameco ValuePro
$2.25
T101T6B6A1QN T101T6B6A1QN
Jameco ValuePro
$1.95
T203T6B6A1QN T203T6B6A1QN
Jameco ValuePro
$2.25
T103T1B1A2QN T103T1B1A2QN
Jameco ValuePro
$1.95

This product has been discontinued and is not available for purchase. Please click on the button below for replacement and/or substitute products.

# of units Price
1+ $1.95
10+ $1.75

Request Larger Quantity Quote

Toggle Switch SPST ON-OFF Rear Panel Mount 15A 125VAC Screw Terminals

Specifications

  • Series: F
  • Circuit: SPST
  • Switch Function: ON-OFF
  • Current Rating: 15 A
  • Voltage Rating: 125 VAC
  • Actuator Type: Standard Round
  • Mounting Type: Panel Mount, Rear
  • Actuator Length: 17.45 mm
  • Termination Style: Screw Terminal
  • Panel Cutout Dimensions: Circular - 12.70 mm Dia
  • Bushing Thread: 15/32-32
  • Operating Temperature: -17.8°C to 65.6°C
  • Electrical Life: 50,000 Cycles


Report a problem
Suggest a product
Specification Value
Contact FormSPST
Switch FunctiONON-OFF
Contact Rating15A @ 125VAC, 10A @ 250VAC
Mounting Hole0.5 in.
Actuator TypeRound Bat
Termination Style6-32 Screws
Pins2
Current Rating15 A
Voltage Rating125 VAC
Power RatingN/A
Body ColorBlack
Color - Actuator/CapChrome
Illumination TypeN/A
Number of Positions2
Mounting StylePanel, Rear
IP RatingN/A
UL Flammability CodeN/A
Length1.13 in.
Width0.63 in.
Depth0.67 in.
Height0.47 in.
Actuator Length0.69 in.
Additional FeatureKeyway
Body OrientationStraight
Bushing TypeThreaded
Dielectric Strength1000V
Electrical Life50000 Cycles
Thread Size15/32-32UNS-2A
