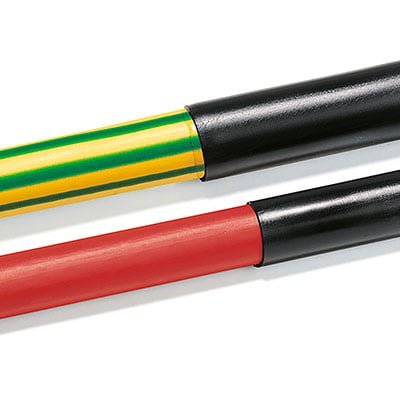

HellermannTyton 318-60150 Heat Shrink Tubing

Heat Shrink Tubing 4' Long Stick Adhesive Lined 3:1 Shrink Ratio 1/8" 3.0/1.0 Dia PO Black 20 per Package

Features

• Adhesive lining provides an excellent seal against moisture and humidity.
• Thin exterior wall is very flexible, while providing superior insulation of cables and components.
• 3 to 1 shrink ratio accommodates a wide range of component shapes and diameters.
• Meets UL224 VW-1 specifications, making it ideal for high heat applications (excludes clear tubing).
• Polyolefin material provides mechanical strength with good resistance to solvents, oils and fuels.
• 4-foot sticks are individually tagged and come in a retail box.
• Product Type: Adhesive Lined Thin Wall

Technical Specifications

• Material: Polyolefin, cross-linked (PO-X)
• Operating Temperature: -67°F to +257°F (-55°C to +125°C)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor Use Only
• Adhesive: Hot melt adhesive
• Elongation at break: 400%
• Length L (Imperial): 4.0 ft
• Length L (Metric): 1.22 m
• Low Temperature Test: 1h/-30°C
• Nominal Diameter (Imperial): 0.13"
• Nominal Diameter (Metric): 3 mm
• Recovered Diameter d (imperial): 0.039"
• Recovered Diameter d (metric): 1.0 mm
• Shrink Ratio: 3:1
• Shrink Temperature: +230 °F (+110 °C)
• Supplied Diameter D (imperial): 0.112"
• Supplied Diameter D (metric): 3.0 mm
• Trade Size: 1/8"
• Variant: Thin-Wall
• Volume Resistance (Ohm cm): 10¹? ? cm
• Wall Thickness WT (Imperial): .039"
• Wall Thickness WT (Metric): 1.00 mm
• CE Certified: No
• CSA Certified: Yes
• Flammability: UL 224 VW-1
• Halogen Free: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL-File Number + Logo: E125182 [cRUus]
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): Yes
• UL Recognized (US and Canada): Yes
• UV Resistant (Yes/No): No
• UPC: 089306363132

Overview

TAN33 is a flexible, thin wall adhesive-lined heat shrink tubing with highly flame retardant properties. The 3 to 1 shrink ratio accommodates a wide range of component shapes and diameters. The adhesive lining begins to activate as the temperature reaches 176° F (80° C), to create a strong seal against moisture and humidity.
