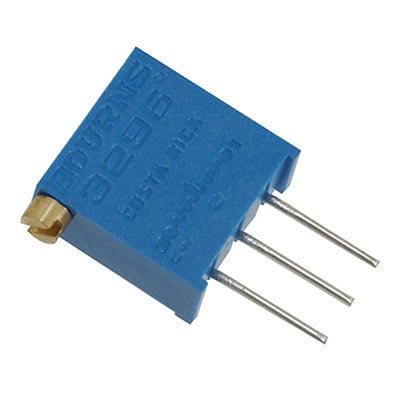

1K Ohm 10% 500mW 3/8" Square Cermet Trimmer Potentiometer

Jameco ValuePro Rohs logo
3296X-1-102LF-JVP Trimmers

View larger image

  • Jameco Part no.: 2358095
  • Manufacturer: Jameco ValuePro
  • Manufacturer p/n: 3296X-1-102LF-JVP
  • HTS code: 8533.40.8050

PRICED TO MOVE

CLOSEOUT

You May Also Like
64Y501 64Y501
Spectrol/Vishay Corporation
$0.39
67YR1K 67YR1K
BI Technologies
$0.49
3296Y-1-103LF-JVP 3296Y-1-103LF-JVP
Jameco ValuePro
$1.25
64Y203 64Y203
Spectrol/Vishay Corporation
$0.49
64Y1MEG 64Y1MEG
Spectrol/Vishay Corporation
$0.59
67YR100 67YR100
BI Technologies
$0.69
Closeout

$0.79 ea

903 In Stock

+ Add to my favorites
# of units Price
1+ $0.79
10+ $0.69
100+ $0.59
500+ $0.49

Request Larger Quantity Quote

1KΩ Square Cermet Trimmer Potentiometer

Features:

  • Resistance range: 10Ω to 1kΩ
  • Tolerance: 10%
  • Power rating: 0.5W @ 70°C
  • Number of turns: 25 nominal
  • Insulation resistance: 1000MΩ
  • Operating temperature range: -55°C to +125°C
  • Size: 0.395"L x 0.375"W x 0.19"D
  • Side adjustment
  • Connection: In-line PC pins


Report a problem
Suggest a product
Specification Value
Manufacturer Series3296
FamilyX
Resistance (Ohm)1000
Power Rating0.50 W
Tolerance10%
Product TypeTrimmer
Number of Turns25
Actuator TypeSide Slot
Termination StylePins
Shaft Diameter2.19 mm
Resistive Element MaterialCermet
TechnologySealed
Minimum Operating Temperature-55°C
Maximum Operating Temperature150°C
MountingThrough Hole
TaperLinear
Width4.83 mm
Height10.03 mm
Length11.05 mm
Temperature Coefficient100 ppm/°C
Actuator OrientationSide
Resistance1 KOhm
