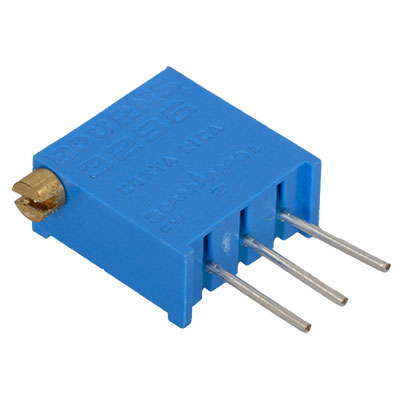

Bourns 3296X-1-202 Potentiometers Trimmers

Bourns Rohs logo
3296X-1-202 Trimmers

View larger image

  • 2k Ohm 3/8" Square Cermet Potentiometer 25 Turn 1/2 Watt X-Pinout
  • Jameco Part no.: 769549
  • Manufacturer: Bourns
  • Manufacturer p/n: 3296X-1-202
  • HTS code: 8533.40.8050
You May Also Like
64Y501 64Y501
Spectrol/Vishay Corporation
$0.39
67YR1K 67YR1K
BI Technologies
$0.49
3296Y-1-103LF-JVP 3296Y-1-103LF-JVP
Jameco ValuePro
$1.25
64Y203 64Y203
Spectrol/Vishay Corporation
$0.49
64Y1MEG 64Y1MEG
Spectrol/Vishay Corporation
$0.59
67YR100 67YR100
BI Technologies
$0.69

This product has been discontinued and is not available for purchase. Please click on the button below for replacement and/or substitute products.

# of units Price
1+ $0.75
10+ $0.65
100+ $0.55
500+ $0.45

Request Larger Quantity Quote

2kΩ Square Cermet Trimmer Potentiometer


Features:

  • Resistance range: 10Ω to 2kΩ
  • Tolerance: 10%
  • Power rating: 0.5W @ 70°C
  • Number of turns: 25 nominal
  • Insulation resistance: 1000MΩ min.
  • Operating temperature range: -55°C to +125°C
  • Size: 0.375"L x 0.19"W x 0.395"H
  • Side adjustment
  • Connection: Solder pins

    Report a problem
    Suggest a product
    • Specification Value
    Manufacturer Series3296
    FamilyX
    Resistance (Ohm)2000
    Power Rating0.50 W
    Tolerance10%
    Product TypeTrimmer
    Number of Turns25
    Actuator TypeSide Slot
    Termination StylePins
    Shaft Diameter2.19 mm
    Resistive Element MaterialCermet
    TechnologySealed
    Minimum Operating Temperature-55°C
    Maximum Operating Temperature150°C
    MountingThrough Hole
    TaperLinear
    Width4.83 mm
    Height10.03 mm
    Length11.05 mm
    Temperature Coefficient100 ppm/°C
    Actuator OrientationSide
    Resistance2 KOhm
