Spectrol/Vishay Corporation 43Y205 Potentiometers Trimmers

Spectrol/Vishay Corporation
43Y205 Trimmers

View larger image

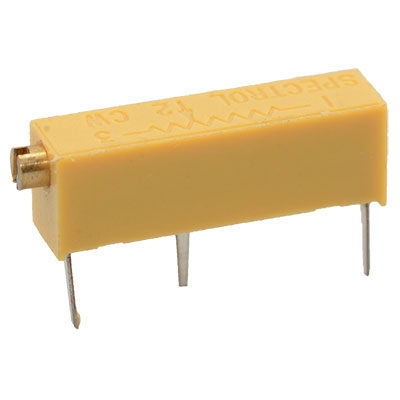

  • 2 MΩ 3/4" Rectangular Cermet Potentiometer 15 Turn 3/4 Watt (750mW)
  • Jameco Part no.: 2180447
  • Manufacturer: Spectrol/Vishay Corporation
  • Manufacturer p/n: 43Y205
  • HTS code: 8533.40.8050

PRICED TO MOVE

CLOSEOUT

You May Also Like
3006P-1-103LF-JVP 3006P-1-103LF-JVP
Jameco ValuePro
$1.45
3006P-1-104LF-JVP 3006P-1-104LF-JVP
Jameco ValuePro
$1.25
3006P-1-203LF-JVP 3006P-1-203LF-JVP
Jameco ValuePro
$0.69
3006P-1-502LF-JVP 3006P-1-502LF-JVP
Jameco ValuePro
$1.25
3006P-1-501LF-JVP 3006P-1-501LF-JVP
Jameco ValuePro
$0.85
3006P-1-504LF-JVP 3006P-1-504LF-JVP
Jameco ValuePro
$0.99
Closeout

$0.49 ea

372 In Stock

+ Add to my favorites
# of units Price
1+ $0.49
10+ $0.39
50+ $0.29
100+ $0.25

Request Larger Quantity Quote

2MΩ Rectangular Cermet Trimmer Potentiometer

Features

  • Resistance range: 10Ω to 2MΩ
  • Tolerance: 10%
  • Power rating: 0.75W @ 70°C
  • Number of turns: 15 turns nominal
  • Insulation resistance: 1000MΩ min.
  • Operating temperature range: -55°C to +125°C
  • Size: 0.75"L x 0.19"W x 0.25"H
  • Connection: Solder pins


Report a problem
Suggest a product
Specification Value
Manufacturer Series3006
FamilyY
Resistance (Ohm)2000000
Power Rating0.75 W
Tolerance10%
Product TypeTrimmer
Number of Turns15
Actuator TypeSide Slot
Termination StylePins
Shaft Diameter2.36 mm
Resistive Element MaterialCermet
TechnologySealed
Minimum Operating Temperature-55°C
Maximum Operating Temperature125°C
MountingThrough Hole
TaperLinear
Width4.83 mm
Height6.35 mm
Length20.57 mm
Temperature Coefficient100 ppm/°C
Actuator OrientationSide
Resistance2 MOhm
