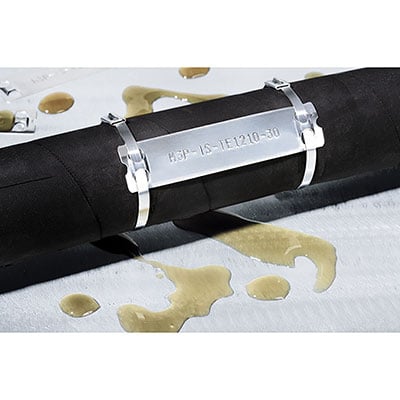

M-Boss Marker 3.54" Wide x 0.78" High Stainless Steel Silver 500/Box
Features
Raised marking ensures text visibility even when covered in dust, debris, grease and oil.
Stainless steel grade SS316 is suitable for use in harsh environments.
Marker plates are designed for use with stainless steel cable ties with a 0.
81" (4.
6 mm) strap width.
Product Type: Solar Identification
Technical Specifications
Material: Stainless Steel (SS316L)
Operating Temperature: -112°F to +1000°F (-80°C to +538°C)
Color: Metal (ML)
Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
Use Conditions: For Indoor and Outdoor Use
Bolt Size (Imperial): MBT Metal ties max width 4.6 mm
Cable Tie Width Max. (Imperial): 0.18"
Diameter D (Imperial): 0.236"
Diameter D (Metric): 6 mm
Fixation Method: Others
Focused Markets and Industries: Defense Industry; Offshore Industry; Rail Transportation Sector; Shipbuilding; Solar Energy Sector; Wind Energy Sector; Food Industry
Height H (Imperial): 0.78"
Height H (Metric): 19.81 mm
Length L (Imperial): 3.54"
Length L (Metric): 89.5 mm
Print Method: embossing
Variant: Other
Width W (Imperial): 0.79"
Width W (Metric): 20.0 mm
CE Certified: No
CSA Certified: No
Flammability: Non-burning
Halogen Free: Yes
Hazardous Goods: No
Prop65 Warning: No
REACH Conformity: Yes
ROHS Compliant: Yes
UL Listed (US): No
UL Listed (US and Canada): No
UL Recognized (US): No
UL Recognized (US and Canada): No
UV Resistant (Yes/No): Yes
UPC: 089306376774
Overview
M-BOSS Compact Markers are used in all areas where severe mechanical or chemical conditions occur, such as offshore industry, solar industry, marine engineering, petrochemical industry, mining, underground or on radio and cellular masts where mark permanence is critical.
