HellermannTyton 596-00382

Phase label 1" x .5" PET White 2500/roll

Features

• Thermal transfer labels are made with high-performance materials for long-term industrial applications.
• Labels can be printed in any standard thermal transfer printer giving the user options for printing and eliminating the need to be dedicated to one printer model.
• The labels are available in a wide variety of sizes so that finding a label for a particular application is easy.
• Product Type: Labels for Thermal Transfer Printers

Technical Specifications

• Material: Polyester (PET)
• Operating Temperature: -40°F to +300°F (-40°C to +149°C)
• Color: White (WH)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor Use Only
• Adhesive: Acrylic
• Height H (Imperial): 0.5"
• Height H (Metric): 12.7 mm
• Horizontal Repeat HR (imperial): 1.0"
• Horizontal Repeat HR (metric): 25.4 mm
• Installation Temperature: +50°F (+10 °C)
• Labels per Column: 3
• Labels per Row: 3
• Print Method: thermal transfer print
• Printable Area Height (imperial): 0.5"
• Printable Area Height (metric): 12.7 mm
• Self laminating: No
• Thickness T (Metric): 64.0 µm
• Vertical Repeat VR (imperial): 0.625"
• Vertical Repeat VR (metric): 15.87 mm
• Width of Liner WL (imperial): 3.35"
• Width of Liner WL (metric): 85.09 mm
• Width W (Imperial): 1.0"
• Width W (Metric): 25.4 mm
• CE Certified: No
• CSA Certified: No
• Halogen Free: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL-File Number + Logo: MH16736 [RU]; MH14382 [RU]
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): Yes
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306356059

Overview

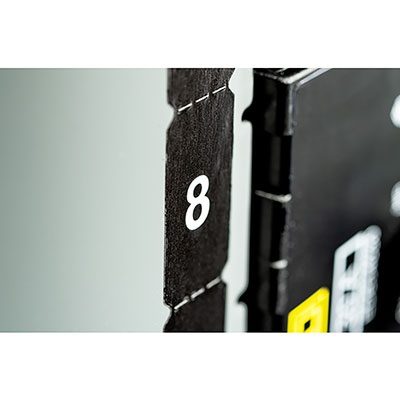

Phase labels are microperforated between each label so that it can be applied as one strip to the panel or broken into individual labels.
