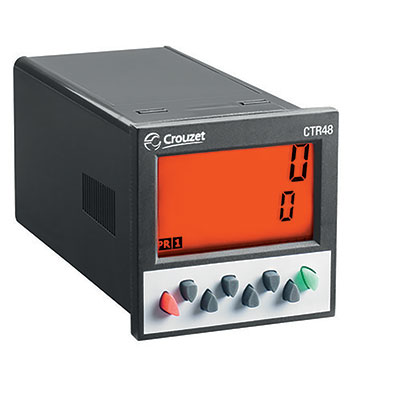

Crouzet 87621115 Industrial Automation Counters

Counter Multi-Function Orange Backlit LCD Display 90-260VAC 1 Preset 2 Out CTR48- LCD 1Preset 90-260 VAC

Features

• Product Type: Multifunction Counter with Preselection
• Number of Digits: 6, 6
• Input Voltage: 90 VAC to 260 VAC
• Mounting: Panel Mount
• Additional Feature: External, Front Panel Reset
• Termination: Screw Terminal
• Input Type: Voltage
• Sampling Rate: 40 kHz
• Display Type: LCD - Black Characters, Orange Backlight
• Character Size: 0.354 in., 9 mm
• Mounting Hole: Square - 45.00mm x 45.00mm
• IP Rating: IP66 - Dust Tight, Water Resistant
• Character Format: 999999 hrs
• Output Type: Relay, Solid State
• Channel Mode: Up, Down, Command, Individual, Quadrature
• Manufacturer Series: CTR48
• Harmonized Code: 9029100090
• ECCN: EAR99

Overview

Counter Multi-Function Orange Backlit LCD Display 90-260VAC 1 Preset 2 Out CTR48- LCD 1Preset 90-260 VAC.
