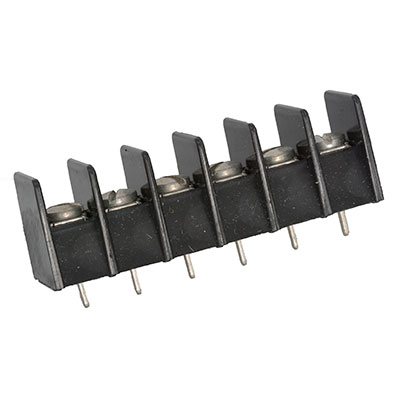

Eaton A20220604 Interconnects Terminal Blocks

Terminal Barrier Strip 6 Position 0.375" (9.53mm) Pitch Screw Straight THM 30A 300V

Specifications

• Series: A2000
• Terminal Block Type: Barrier Block
• Number of Circuits: 6
• Number of Wire Entries: 6
• Pitch: 0.375" (9.53mm)
• Number of Rows: 1
• Current Rating: 30A
• Voltage Rating: 300V
• Wire Gauge: 12-22 AWG
• Top Termination: 6-32 screws
• Bottom Termination: PC Pin
• Barrier Type: 2 Wall (Dual)
• Features: -
• Color: Black
• Terminal Screw Material: Brass
• Terminal Screw Finish: Nickel
• Mounting Type: Through Hole
• Operating Temperature: -40°F to 105°F
• Material - Insulation: Thermoplastic
• Material Flammability Rating: UL94 V-0
