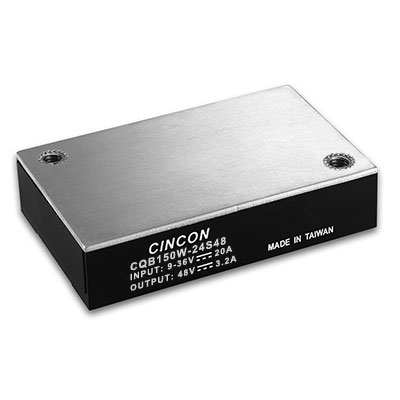

Cincon CQB150W-24S05 Enclosed DC to DC Isolated

Cincon Rohs logo
CQB150W-24S05 Enclosed

View larger image

  • DC-DC Converter Isolated 5VDC 30A 4:1 Input 9-36VDCin Quarter-Brick Board Mount
  • Jameco Part no.: 2310839
  • Manufacturer: Cincon
  • Manufacturer p/n: CQB150W-24S05
  • NCNR (Non-Cancelable, Non-Returnable)
  • HTS code: 8504.40.0000
You May Also Like
SD-25A-5 SD-25A-5
MEAN WELL
$26.20
SD-100C-5 SD-100C-5
MEAN WELL
$40.70
SD-100B-5 SD-100B-5
MEAN WELL
$40.70
SD-50B-5 SD-50B-5
MEAN WELL
$32.70
SD-50A-5 SD-50A-5
MEAN WELL
$32.70
SUS01L-05 SUS01L-05
MEAN WELL
$4.45

$169.95 ea

18 Weeks Lead Time

*This product is subject to a tariff. See detail in the cart.

+ Add to my favorites
# of units Price
1+ $169.95
5+ $159.95
25+ $149.95
100+ $116.95
500+ $92.85

Request Larger Quantity Quote

DC-DC Converter Isolated 5VDC 30A 4:1 Input 9-36VDCin Quarter-Brick Board Mount

Features

  • 150W Isolated Output
  • 4:1 Input Range
  • Fixed Switching Frequency
  • Regulated Outputs
  • Low No Load Power Consumption
  • Over Temperature Protection
  • Over Voltage/Current Protection
  • Continuous Short Circuit Protection
  • Remote ON/OFF
  • Quarter-Brick Package Meets Industrial Standard
  • UL60950-1 2nd Approval
  • CB Test Certificate IEC60950-1
  • Meets EN50155 with External Circuits
  • Shock & Vibration Meets EN50155 (EN61373)
  • Fire & Smoke Meets EN45545-2
  • 3000m Operating Altitude

Specifications

  • Output Voltage: 5 VDC
  • Output Current: 0 mA to 30 A
  • Input Voltage: 9 to 36 VDC (24 VDC nominal)
  • Input Current: 10 mA (no load); 7.02 A (full load)
  • Efficiency: 91%
  • Capacitive Load: 30,000 µF (max.)
  • Size: 2.28"W x 1.45"D x 0.5"H


Report a problem
Suggest a product
Specification Value
Number of Outputs1
Output Voltage5 VDC
Additional Output Voltages (VDC)N/A
Output Current30 A
Input Voltage Range9 VDC to 36 VDC
Maximum Input Current7.02 A
Output Connector TypePC Pins
PackageQuarter Brick
Agency ApprovalsUL, CUL, CB, CE, EN
Power Rating150 W
Manufacturer SeriesCQB150W
Product TypeDC-DC Converter SMPS
Efficiency92%
Input Voltage24 VDC
Minimum Operating Temperature-40°C
Maximum Operating Temperature105°C
Pins8
Length2.28 in.
Width1.45 in.
Height0.5 in.
MountingPCB
ComplianceCompliance Docs
