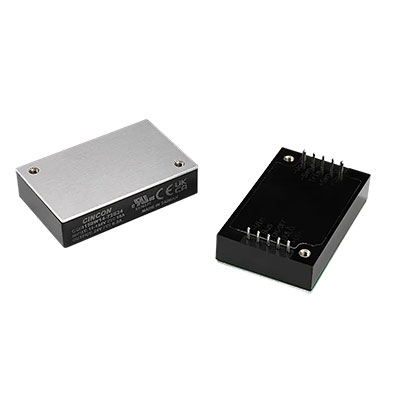

Cincon CQB150W14-72S12N Encapsulated DC to DC Isolated Converters

Cincon Rohs logo
CQB150W14-72S12N Encapsulated

View larger image

  • Railway Isolated DC-DC Converter 150W 12V 12500mA Out 12-160Vin Negative Logic Remote On-Off M3 Mounting Inserts
  • Jameco Part no.: 2660031
  • Manufacturer: Cincon
  • Manufacturer p/n: CQB150W14-72S12N
  • NCNR (Non-Cancelable, Non-Returnable)
You May Also Like
SKE15A-12 SKE15A-12
MEAN WELL
$19.55
DKE15A-12 DKE15A-12
MEAN WELL
$21.25
SKE15B-12 SKE15B-12
MEAN WELL
$19.55
DLW05A-12 DLW05A-12
MEAN WELL
$15.15
SLW05A-12 SLW05A-12
MEAN WELL
$14.15
SLW05C-12 SLW05C-12
MEAN WELL
$14.15

$244.95 ea

18 Weeks Lead Time

*This product is subject to a tariff. See detail in the cart.

+ Add to my favorites
# of units Price
1+ $244.95
5+ $229.95
25+ $215.95
100+ $180.95
500+ $142.95

Request Larger Quantity Quote

Railway Isolated DC-DC Converter 150W 12V 12500mA Out 12-160Vin Negative Logic Remote On-Off M3 Mounting Inserts

Features

  • 150W Isolated Output
  • Efficiency up to 90.5%
  • Fixed Switching Frequency
  • 14:1 Input Range
  • Regulated Outputs
  • Negative Logic Remote On/Off
  • Low No Load Power Consumption
  • Fully protected (OTP/OCP/OVP/UVLO)
  • 3000Vac I/O Isolation
  • Operating Case Temperature -40 to +105°C
  • Quarter Brick Size Meet Industrial Standard 2.28" x 1.45" x 0.5"
  • CB Test Certificate IEC62368-1
  • EN55032/EN55035/EN50155 Compliant with External Circuits
  • UL62368-1 2nd (Reinforce Insulation) Approval
  • Shock & Vibration EN50155 (EN61373) Compliant
  • Fire & Smoke EN45545-2 Compliant
  • 5000m Operating Altitude
  • M3x0.5 Mounting Inserts

Overview

Railway Isolated DC-DC Converter 150W 12V 12500mA Out 12-160Vin Negative Logic Remote On-Off M3 Mounting Inserts.



Report a problem
Suggest a product
Specification Value
Output Voltage12 VDC
Output Current12.50 A
Power Rating150 W
AC Power CordN/A
Additional Output Voltages (VDC)N/A
Input Voltage Range12 VDC to 160 VDC
Input Voltage72 VDC
Maximum Input Current12.5 A
Output Connector TypePC Pins
Pins10
Number of Outputs1
Manufacturer SeriesCQB150W14
Product TypeDC-DC Converter for Railway SMPS
Efficiency90%
Minimum Operating Temperature-40°C
Maximum Operating Temperature105°C
Length2.28 in.
Width1.45 in.
Height0.50 in.
Agency ApprovalsUL, CUL, CB, CE, EN, UKCA
ColorBlack, Gray
TypeIsolated
ComplianceCompliance Docs
Isolation Voltage3000V
Additional FeatureNegative Logic Remote ON/OFF
