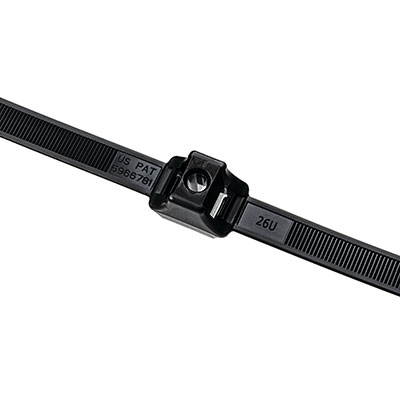

Dual Clamp Tie 19.20" Long 0.25" Stud Dia 2.30" Max Bundle Dia 150lb PA66HIRHSUV Black 50 per Package
Features
Provides dual separation between bundles to prevent chafing and abrasion.
150lb.
tensile strength ensures enough strength for heavy duty applications.
Straps are releasable for increased serviceability.
Product Type: Dual Clamp Ties
Technical Specifications
Material: Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Operating Temperature: -40°F to +221°F (-40°C to +105°C)
Color: Black (BK)
Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
Use Conditions: For Indoor and Outdoor Use
Bundle Diameter Max. (Imperial): 2.28"
Bundle Diameter Max. (Metric): 58.0 mm
Bundle Diameter Min. (Imperial): 0.25"
Bundle Diameter Min. (Metric): 6.4 mm
Cable Tie Closure: plastic pawl
Fixation Method: Weld Stud Fixing
Focused Markets and Industries: Automotive Industry
Height H (Imperial): 0.8"
Height H (Metric): 20.32 mm
Length L (Imperial): 19.2"
Length L (Metric): 487.68 mm
Mounting Hole Diameter D (Imperial): 0.20"
Mounting Hole Diameter D (Metric): 6.2 mm
Mounting Hole Diameter D Max. (Imperial): 0.20"
Mounting Hole Diameter D Max. (Metric): 6.2 mm
Mounting Hole Diameter D Min. (Imperial): 0.20"
Mounting Hole Diameter D Min. (Metric): 6.2 mm
Mounting Hole Shape: Round
Recommended Application Tool: 110-80003
Releasable Closure: No
Stud Diameter (Imperial): 1/4"
Stud Diameter (Metric): M6
Tensile Strength Min. (Imperial): 150 lbs
Tensile Strength Min. (kgf): 68.02 kgf
Tensile Strength Min. (Metric): 667 N
Thickness T (Imperial): 0.06"
Thickness T (Metric): 1.4 mm
Toothing (Serration): Inside Serrated
Variant: Inside Serrated
Width W (Imperial): 0.5"
Width W (Metric): 12.7 mm
Width W2 (Imperial): 0.7"
Width W2 (Metric): 19.7 mm
CE Certified: No
CSA Certified: No
Flammability: UL 94 HB
Hazardous Goods: No
Prop65 Warning: No
REACH Conformity: Yes
ROHS Compliant: Yes
UL Listed (US): No
UL Listed (US and Canada): No
UL Recognized (US): No
UL Recognized (US and Canada): No
UV Resistant (Yes/No): Yes
UPC: 089306165286
Overview
Dual-Clamp Ties are designed to provide parallel separation between hoses, wires, cables, and tubing to protect them from abrasion. These ties have an optional mounting hole for securing bundles along the chassis of trucks, trailers, and heavy duty equipment. The unique one-piece design features the dual head centered on the strap.
