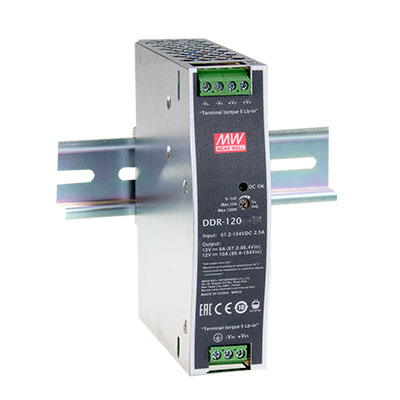

MEAN WELL DDR-120C-12 DIN Rail Isolated DC DC Converters

MEAN WELL Rohs logo
DDR-120C-12 DIN-Rail

View larger image

  • 120W DIN Rail Type DC-DC Converter 33.6 to 67.2VDC Input 12V 10A Output
  • Jameco Part no.: 2279423
  • Manufacturer: MEAN WELL
  • Manufacturer p/n: DDR-120C-12
  • NCNR (Non-Cancelable, Non-Returnable)
  • HTS code: 8504.40.9510

$$ Lowest Prices on MEAN WELL

You May Also Like
LT1374CT7 LT1374CT7
Linear Technology
$4.00
DDR-15G-5 DDR-15G-5
MEAN WELL
$20.50
DDR-15G-12 DDR-15G-12
MEAN WELL
$20.50
DDR-15G-15 DDR-15G-15
MEAN WELL
$20.50
DDR-15G-24 DDR-15G-24
MEAN WELL
$20.50
DDR-15G-3.3 DDR-15G-3.3
MEAN WELL
$20.50

$69.20 ea

3 Days Lead Time
2 Weeks Lead Time

*This product is subject to a tariff. See detail in the cart.

+ Add to my favorites
# of units Price
1+ $69.20
5+ $65.90
10+ $63.00
20+ $61.20

Request Larger Quantity Quote

120W DIN Rail Type DC-DC Converter 33.6-67.2VDC Input 12V 10A Output

Features

  • Width only 32mm
  • -40 to 70°C
  • 2:1 wide input range
  • DC output adjustable(±10%)
  • 4000 VDC I/O isolation
  • Can be installed on DIN rail TS-35/7.5 or 15
  • Cooling by free air convection
  • Protections: Short circuit/Overload/Over voltage/Input reverse polarity/Input under voltage protection
  • No minimum load required
  • 3 year warranty

Applications

  • Telecom or Datacom system
  • Factory automation
  • Electro-mechanical
  • Wireless network
  • Semi-conductor fabrication equipment
  • Industrial control system


Report a problem
Suggest a product
Specification Value
Output Voltage12 VDC
Output Current10 A
Power Rating120 W
Manufacturer SeriesDDR-120
Input Voltage Range33.6 VDC to 67.2 VDC
Input Voltage48 VDC
Maximum Input Current2.8 A
Output Connector TypeScrew Terminal Block
Number of Outputs1
Product TypeDC-DC Converter SMPS
Efficiency89.5%
MountingDIN Rail
Minimum Operating Temperature-40°C
Maximum Operating Temperature70°C
Length4.02 in.
Width1.26 in.
Height4.93 in.
Agency ApprovalsCE
ColorCarbon
Output Voltage (Channel 1)12 VDC
Output Current (Channel 1)10 A
ComplianceCompliance Docs
