Complies to BC EN/EN55032 radiated Class A without additional components
High efficiency
Protections: Short circuit (continuous), Overload, Over voltage, UVLO
1.5KV DC I/O isolation
Remote ON/OFF control
Trimming output (±10%)
3-year warranty
Applications
Telecom/datacom system
Wireless network
Industrial control facility
Instruments
Analyzers
Detectors
Data switch
Overview

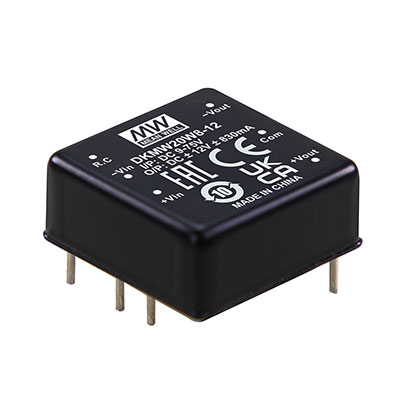

The SKMW20W8 and DKMW20W8 series are 20W isolated and regulated module type DC-DC converters in a DIP 1"x1" package. It features international standard pins, a high efficiency up to 88%, wide working temperature range -40°C to +90°C, 1.5KVdc input-output isolation voltage, compliance to BS EN/EN55032 radiated Class A without additional components, continuous-mode short circuit, overload, over voltage, input under voltage protections, remote ON/OFF and trimmable output voltage.
The models operate from 9 to 75 VDC (8:1) ultra-wide input range, with various output voltage: 3.3V, 5V, 12V, 15V for single output and ±12V, ±15V for dual outputs, which are suitable for different kinds of systems such as industrial control, telecommunications field, distributed power architecture, and more.
