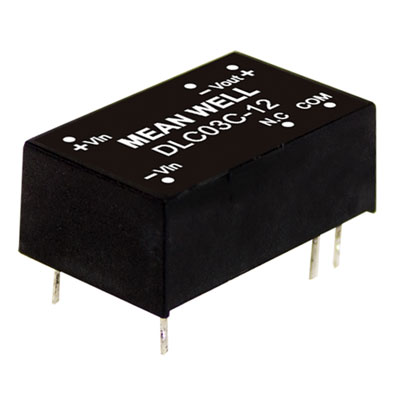

MEAN WELL DLC03C-12 Encapsulated DC to DC Isolated Converters

MEAN WELL Rohs logo
DLC03C-12 Encapsulated

View larger image

  • Dual Output 3W 12V 0.125A DIP-16 Isolated DC-DC Regulated Converter 48V
  • Jameco Part no.: 2261943
  • Manufacturer: MEAN WELL
  • Manufacturer p/n: DLC03C-12
  • NCNR (Non-Cancelable, Non-Returnable)
  • HTS code: 8504.40.9510

$$ Lowest Prices on MEAN WELL

You May Also Like
SKE15A-12 SKE15A-12
MEAN WELL
$19.55
DKE15A-12 DKE15A-12
MEAN WELL
$21.25
SKE15B-12 SKE15B-12
MEAN WELL
$19.55
DLW05A-12 DLW05A-12
MEAN WELL
$15.15
SLW05A-12 SLW05A-12
MEAN WELL
$14.15
SLW05C-12 SLW05C-12
MEAN WELL
$14.15

$9.95 ea

3 Weeks Lead Time

*This product is subject to a tariff. See detail in the cart.

+ Add to my favorites
# of units Price
36+ $9.95
144+ $9.35
576+ $8.75

Request Larger Quantity Quote

NOTE:
  • Order in multiples of 36

Dual Output 3W ±12V ±0.125A DIP-16 Isolated DC-DC Regulated Converter 48Vin

Output: +/-12 Volts @ +/-0.125 Amps

Features

  • DIP16 package with industry standard pinout
  • 2:1 wide input range
  • Input voltage range: 36V to 75V
  • Line regulation: ±0.2%
  • Load regulation: ±0.5%
  • Operating temperature range: -40°C to +85°C
  • No minimum load required
  • Complies with EN55032 radiated Class B without additional components
  • High efficiency up to: 80%
  • Protections: Short circuit (continuous), overload, input under voltage
  • 1.5KVDC I/O isolation
  • 3 year warranty

Applications

  • Telecom and Datacom systems
  • Wireless networks
  • Industrial control facilities
  • Instrument
  • Analyzer
  • Detector
  • Data switch


Report a problem
Suggest a product
Specification Value
Output Voltage12 VDC
Output Current0.125 A
Power Rating3 W
Additional Output Voltages (VDC)-12 VDC
Input Voltage Range36 VDC to 75 VDC
Input Voltage48 VDC
Maximum Input Current0.078 A
Output Connector TypeDIP-16
Pins6
Number of Outputs2
Manufacturer SeriesDLC03
Product TypeDC-DC Regulated Dual Output SMPS
Efficiency80%
Minimum Operating Temperature-40°C
Maximum Operating Temperature85°C
Length0.87 in.
Width0.54 in.
Height0.34 in.
TypeIsolated
ComplianceCompliance Docs
