Constant Voltage Constant Current LED Driver 7.5V-15V 7.5A-15A Adjustable Output and Dimming Made in Taiwan
Features
Constant Voltage + Constant Current mode output
Metal housing design with Class I design
Built-in active PFC function
IP67 or IP65 (model depending) for indoor or outdoor installations
Function options: output adjustable via potentiometer, 3-in-1 dimming (dim-to-off), Smart timer dimming
Typical lifetime >62,000 hours
7-year warranty
Made in Taiwan
Overview

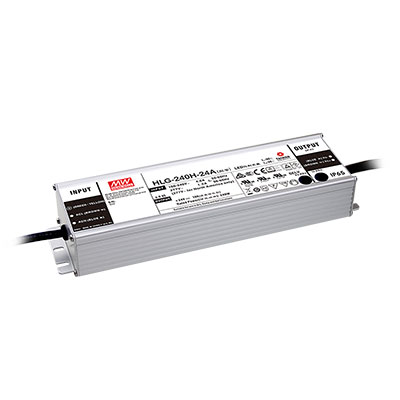

HLG-240H series is a 240W LED AC/DC driver featuring the dual mode constant voltage and constant current output. HLG-240H operates from 90-305 VAC and offers models with different rated voltages ranging between 12V and 54V. Thanks to the high efficiency up to 93.5% and the fanless design, the entire series can operate with -40C to +90C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-240H is equipped with various function options, such as dimming methodologies, to provide the optimal design flexibility for LED lighting systems.
Applications
LED street lighting
LED architectural lighting
LED bay lighting
LED flood lighting
Tyle "HL" for use in Class I, Division 2 hazardous (Classified) locations
