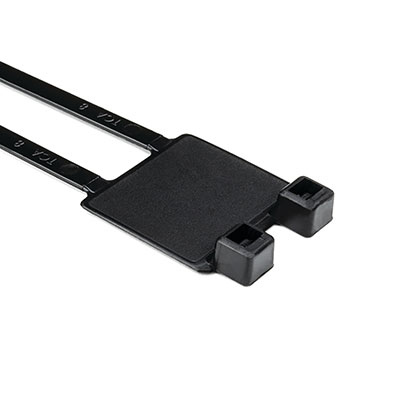

HellermannTyton IT50RD0UVK2

MilSpec Identification Tie 8" Long MS3368 50lb Tensile Strength PA66UV Black 50 per Package

Features

• UV stabilized cable ties provide excellent resistance to UV exposures.
• Identification plate feature allows bundles to be easily marked and identified.
• Wire and cable harnesses can be secured and identified using just one product, which saves time.
• Plates can be marked manually with a permanent marker or with a pre-printed adhesive label.
• Complies with MS3368-3-0C, Class 1 and SAE-AS33681.
• Product Type: Identification Cable Ties

Technical Specifications

• Material: Polyamide 6.6 UV-resistant (PA66UV)
• Operating Temperature: -40°F to +185°F (-40°C to +85°C)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Bundle Diameter Max. (Imperial): 1.73"
• Bundle Diameter Max. (Metric): 44.0 mm
• Bundle Diameter Min. (Imperial): 0.39"
• Bundle Diameter Min. (Metric): 10.0 mm
• Cable Tie Closure: plastic pawl
• Fixation Method: None
• Height H (Imperial): 1.04"
• Height H (Metric): 26.3 mm
• Length L (Imperial): 8.0"
• Length L (Metric): 203.2 mm
• Outside Diameter Max. (Imperial): 1.73"
• Outside Diameter Max. (Metric): 44.00 mm
• Outside Diameter Min. (Imperial): 0.393"
• Outside Diameter Min. (Metric): 10.00 mm
• Print Method: manual marking
• Recommended Application Tool: 110-03500; 110-06000; 110-07000; 110-07101; 110-70083; 110-80000; 110-80004
• Recommended Labels: TAG15T3-822
• Releasable Closure: No
• Tensile Strength Min. (Imperial): 50 lbs
• Tensile Strength Min. (kgf): 22.94 kgf
• Tensile Strength Min. (Metric): 225 N
• Toothing (Serration): Inside Serrated
• Variant: Inside Serrated
• Width W (Imperial): 1.1"
• Width W (Metric): 29.0 mm
• Width W2 (Imperial): 0.19"
• Width W2 (Metric): 4.7 mm
• CE Certified: Yes
• CSA Certified: No
• Flammability: UL 94 V-2
• Halogen Free: Yes
• Prop65 Warning: No
• REACH Conformity: No
• ROHS Compliant: Yes
• UL-File Number + Logo: E64139 [C_RU_US_62275_Type11]
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): Yes
• UL Recognized (US and Canada): Yes
• UV Resistant (Yes/No): Yes
• UPC: 089306181880

Overview

Identification Cable Ties feature an identification plate that allows wire and cable bundles to be easily marked and identified. These ties enable wire and cables to be secured and identified using just one product, saving installation time. The plates can be marked using a permanent marker or with a HellermannTyton adhesive label. Specially manufactured to comply with Military Specification MS3368-3-0C, Class 1 and SAE-AS33681.
