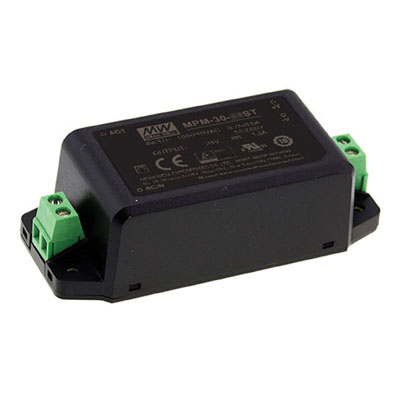

MEAN WELL MPM-30-3.3ST Enclosed Medical AC to DC

3.3V 6A 19.8W High Reliability 2xMOPP Encapsulated Green Medical Power Supply Screw Terminal

Features

• 2.73" x 1.53" compact size
• Medical safety approved (2x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
• Suitable for BF application with appropriate system considerations
• No load power consumption <0.075W
• Extremely low leakage current
• Wide operating temperature range: -40 to +85°C
• EMI class B for class II configuration
• Protections: Short circuit, overload, over voltage, over temperature
• No minimum load required
• 3 year warranty

Specifications

• Rated power: 19.8 watts
• Input: 80-264 VAC @ 47-63 Hz
• Ripple & noise: 80 mVp-p
• Line regulation: ± 0.5%
• Load regulation: ± 1.0%
• Efficiency: 82.5%
• Agency approvals: UL, CUL, TUV, CB, CE

Applications

• Portable medical devices
• Mobile clinical workstations
• Medical computer monitor
• Medical examination instruments
