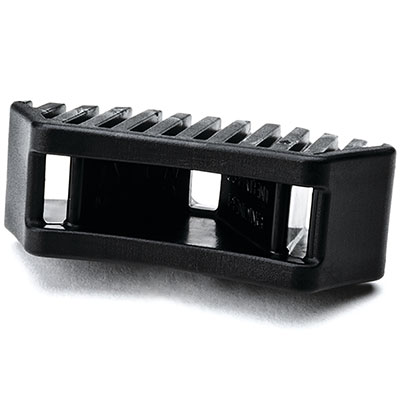

Saddle Mount For Button Head Tie 0.44 - 0.82" Mounting Hole PA66HIRHSUV Black 500 per Package
Features
Secures up to three bundles for multiple routing.
Provides parallel spacing between frame rail and adjacent bundles to reduce wear.
Manufactured with a pilot bushing which prevent the cable tie from chafing against the burr edge of the mounting hole.
Product Type: Mounts Secured with Mechanical Fasteners - Multiple Bundles
Technical Specifications
Material: Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
Operating Temperature: -40°F to +221°F (-40°C to +105°C)
Color: Black (BK)
Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
Use Conditions: For Indoor and Outdoor Use
Bundle Diameter 1st Hole Max. (Imperial): 6.0"
Bundle Diameter 1st Hole Max. (Metric): 152.4 mm
Bundle Diameter 2nd Hole Max. (Imperial): 1.0"
Bundle Diameter 2nd Hole Max. (Metric): 25.4 mm
Bundle Diameter 3rd Hole Max. (imperial): 1.0"
Bundle Diameter 3rd Hole Max. (metric): 25.4 mm
Fixation Method: Screw Mounting and Rivet
Focused Markets and Industries: Wind Energy Sector; Rail Transportation Sector; Automotive Industry; Electronics Industry; Defense Industry
For Cable Ties: BT130, BT105
Height H (Imperial): 0.8"
Height H (Metric): 20.6 mm
Height H2 (Imperial): 0.90"
Height H2 (Metric): 22.2 mm
Length L (Imperial): 1.9"
Length L (Metric): 48.3 mm
Mounting Hole Diameter D (Imperial): 0.44 - 0.82"
Mounting Hole Diameter D (Metric): 11.2 - 20.8 mm
Mounting Hole Diameter D Max. (Imperial): 0.82"
Mounting Hole Diameter D Max. (Metric): 20.8 mm
Mounting Hole Diameter D Min. (Imperial): 0.44"
Mounting Hole Diameter D Min. (Metric): 11.2 mm
Mounting Hole Shape: Round
Panel Thickness Max. (Metric): 19.1 mm
Panel Thickness Min. (Metric): 4.1 mm
Width W (Imperial): 0.65"
Width W (Metric): 16.5 mm
CE Certified: No
CSA Certified: No
Flammability: UL 94 HB
Hazardous Goods: No
Prop65 Warning: No
REACH Conformity: Yes
ROHS Compliant: Yes
UL Listed (US): No
UL Listed (US and Canada): No
UL Recognized (US): No
UL Recognized (US and Canada): No
UV Resistant (Yes/No): No
UPC: 089306219491
Overview
HellermannTyton's saddle mounts are designed to be used with button head ties, the saddle mount stands off bundles from frame rails, providing clearance from bolts and other protrusions for protection against abrasion. This mount also allows the flow-through of salt, dirt, and other impurities from the road which prevent unwanted build-up on hoses and harnesses. The tie is snapped into the mount which allows the strap and tie assembly to be pre-installed on the frame rail or panel. The mount can secure three separate bundles, providing parallel spacing between the frame rail and adjacent bundles. The saddle mount is manufactured with a pilot busing which prevents the cable tie from chafing against the burr edge of the mounting hole.
