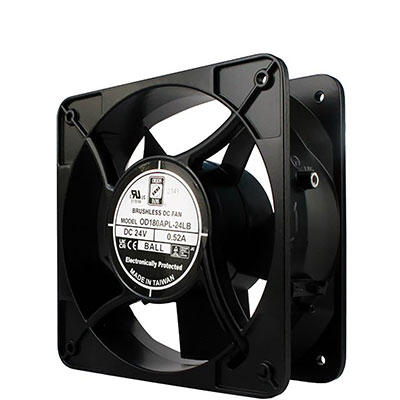

Orion Fans OD180APL-24HB DC Brushless Fans

180 mm x 180 mm x 65 mm Tube Axial Fan 24 VDC Ball Bearing 460CFM 63.2dBA 12" Wires

Features

• Voltage Rating: 24 VDC
• Height: 180 mm
• Width: 180 mm
• Depth: 65 mm
• Air Flow (CFM): 460
• Bearing: Ball
• Current Rating: 2500 mA
• Power Rating: 60 W
• Agency Approvals: UL, CUL, TUV, CE, UKCA
• Noise (dBA): 63.2
• Termination: 12" Wires
• Product Type: 180mm x 180mm DC Fan
• Speed: 3375 rpm
• Maximum Pressure: 1.1 in.
• Additional Features: Die Cast Aluminum Frame Black, PBT Impeller
• Motor Drive Type: Brushless DC, Auto Restart, Rotor Lock, Polarity Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 3375 rpm.
