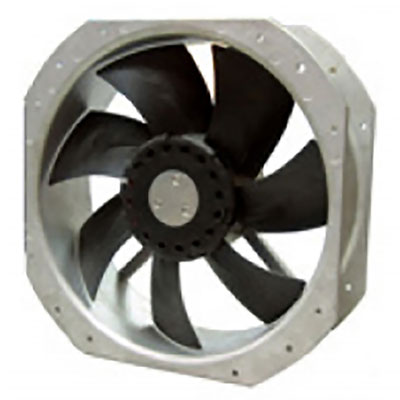

Orion Fans OD280AN-24HTB DC Brushless Fans

280 mm x 280 mm x 89 mm Tube Axial Fan 24 VDC Ball Bearing 1200CFM 72dBA Terminals

Features

• Voltage Rating: 24 VDC
• Height: 280 mm
• Width: 280 mm
• Depth: 89 mm
• Air Flow (CFM): 1200
• Bearing: Ball
• Current Rating: 4330 mA
• Power Rating: 105 W
• Agency Approvals: UL, CUL, TUV, CE, UKCA
• Noise (dBA): 72
• Termination: Terminals
• Product Type: 280mm x 280mm DC Fan
• Speed: 2550 rpm
• Maximum Pressure: 0.9 in.
• Additional Features: Die Cast Aluminum Frame, PBT Impeller
• Motor Drive Type: Brushless DC, Auto Cutoff, Auto Restart, Electronically Protected, Polarity Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 2550 rpm.
