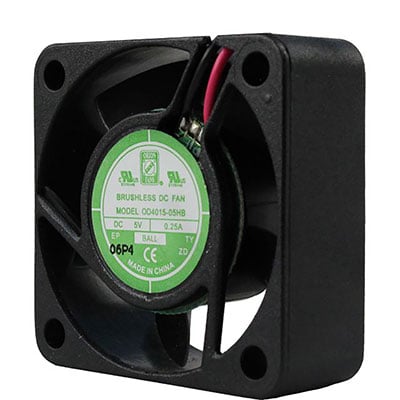

Orion Fans OD4015-05HB02A DC Brushless Fans

40 mm x 40 mm x 15 mm Tube Axial Fan 5 VDC Ball Bearing 8.5CFM 36dBA 12" Wires (3)

Features

• Voltage Rating: 5 VDC
• Height: 40 mm
• Width: 40 mm
• Depth: 15 mm
• Air Flow (CFM): 8.5
• Bearing: Ball
• Current Rating: 250 mA
• Power Rating: 1.25 W
• Agency Approvals: UL, CUL, TUV, CE, UKCA
• Noise (dBA): 36
• Termination: 12" Wires (3)
• Product Type: 40mm x 40mm DC Fan
• Speed: 8000 rpm
• Maximum Pressure: 0.25 in.
• Additional Features: Open Collector Alarm Output
• Motor Drive Type: Brushless DC, Auto Restart, Polarity Protected

Overview

Fans are a necessary component when you need to keep electronics cool or to keep the air flow moving. The Ball bearing system of the tube axial fan is designed to operate up to 8000 rpm.
