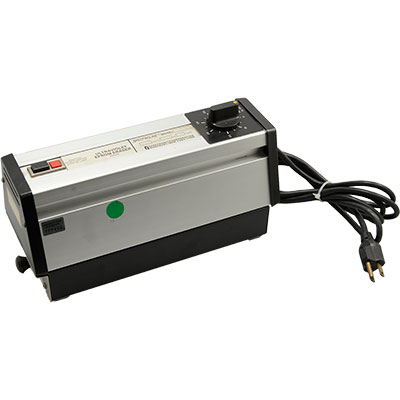

Spectroline PL-265T (USED LIKE NEW) Universal Programmers

254nm UV EPROM Eraser 30 Chip Capacity 11 Minute (Refurbished)

Features

• Memory Type: Non-Volatile
• Memory Format: EPROM
• Technology: EPROM - UV
• Chip Erasing Capacity: 30
• Automatic Timer Shut-Off: Yes
• Typical Intensity: 9,600 µW/cm²
• Nominal Erasing Energy:
  • 6W-sec cm²: 10.4 minutes (2 EPROMs) to 13.6 minutes (30 EPROMs)<>
  • 10W-sec cm²: 17.4 minutes (2 EPROMs) to 22.7 minutes (30 EPROMs)
  • 15W-sec cm²: 26 minutes (2 EPROMs) to 34.1 minutes (30 EPROMs)
• Inside Tray Dimensions: 9.875"L x 4.125"W x 1.375"H
• Overall Housing Dimensions: 11.125"L x 4.625"W x 5.375"H

Overview

All Spectroline erasers are handsomely styled of rugged, anodized aluminum and stainless steel. They have a safety interlock to protect the user against accidental exposure to hazardous short wave (254nm) UV radiation. The PL-264T is an ideal lamp for data processing centers and other medium-volume EPROM users. It is equipped with two 6-watt tubes for more efficient erasing. It will accept PC boards and metric cards up to 4"x9". This unit is used but refurbished to like new condition.
